HUAWEI Mate XT 2 ULTIMATE DESIGN LAP-AL10 (CN Version)

Important Notice: This is a Chinese-market Huawei model. It supports all major system languages; however, it does not support Google Mobile Services (GMS), including the Google Play Store. Please consider this compatibility limitation before purchasing.

The Mate XT 2 ULTIMATE DESIGN is a tri-fold smartphone with a 6.5-inch cover screen and a 10.2-inch unfolded OLED workspace. Kirin 9050 Pro, 16GB of RAM, and HarmonyOS 7.0 support its large-screen features. IVORION offers the Chinese-market model in the storage, color, and screen/package configurations listed below.

Key features

• Tri-fold design with a 10.2-inch inner OLED display and a 6.5-inch cover display.
• Kirin 9050 Pro and 16GB RAM across every offered configuration.
• 50MP variable-aperture main camera, 40MP ultrawide, and 50MP stabilized periscope telephoto.
• Standard inner display at 1–90 Hz, or Privacy Screen versions at 1–120 Hz.
• 5600 mAh typical battery with up to 66W wired and 50W wireless charging using compatible hardware.
• Optional 2TB Privacy Screen + Stylus Set with an included HUAWEI M-Pen 3 Mini.

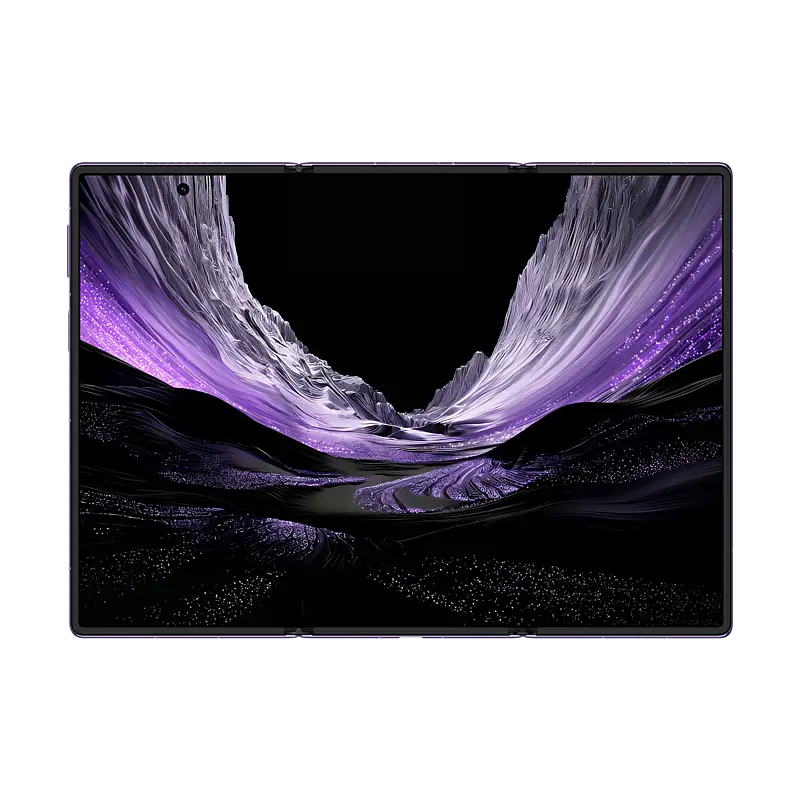

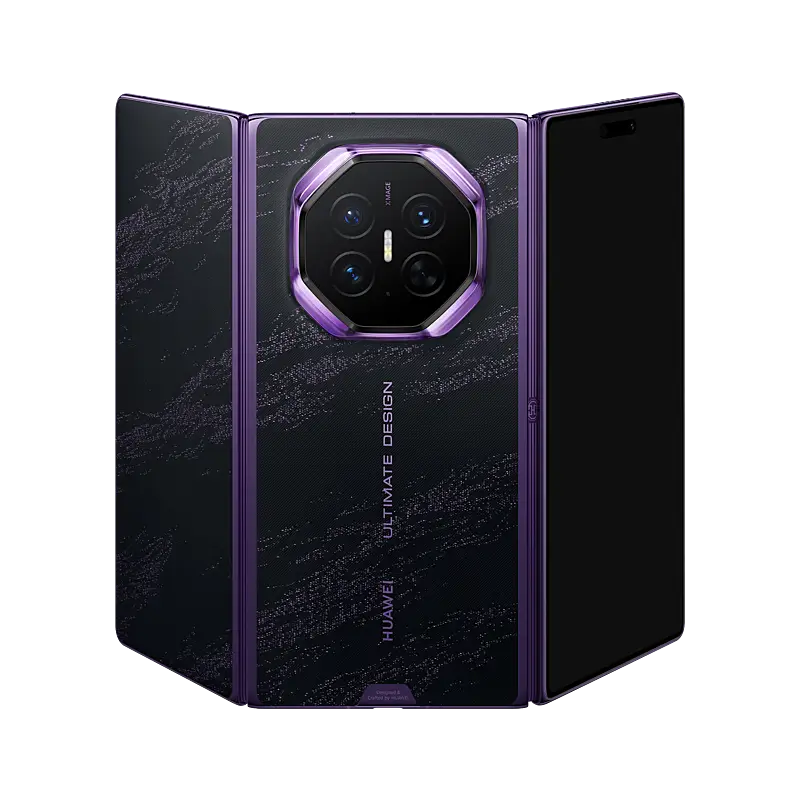

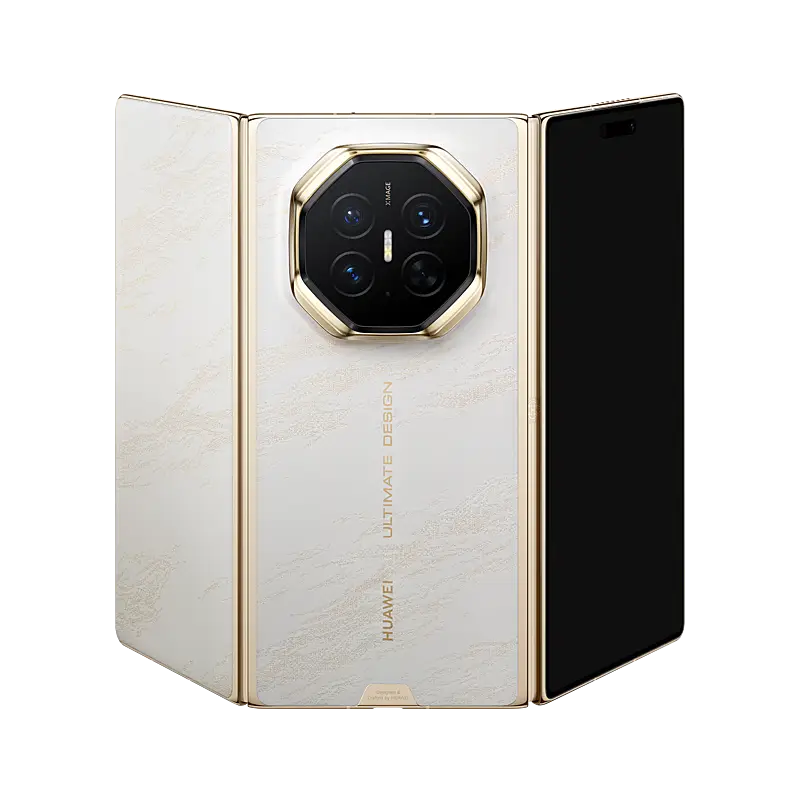

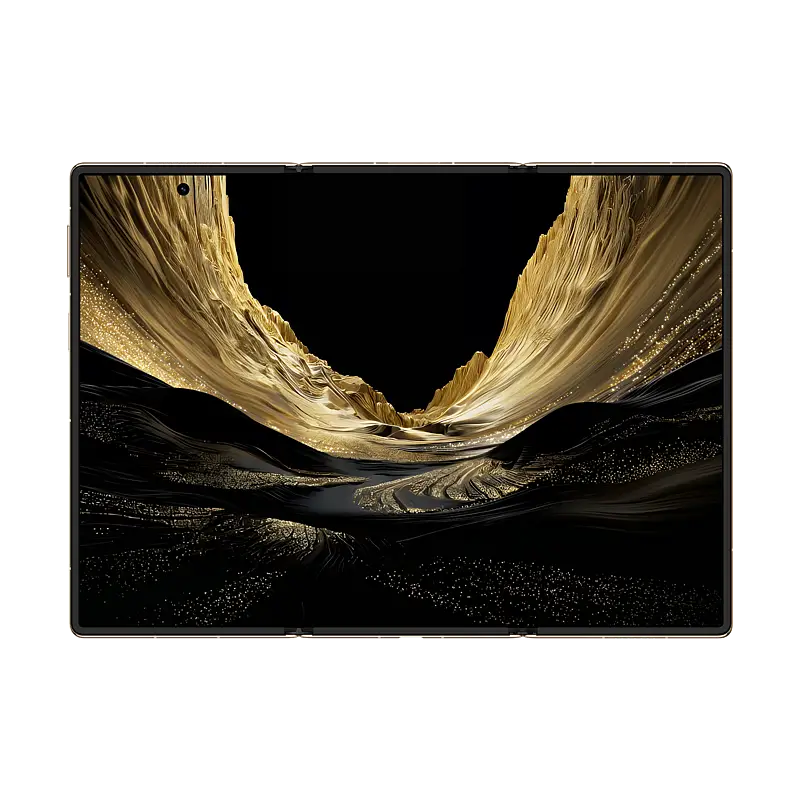

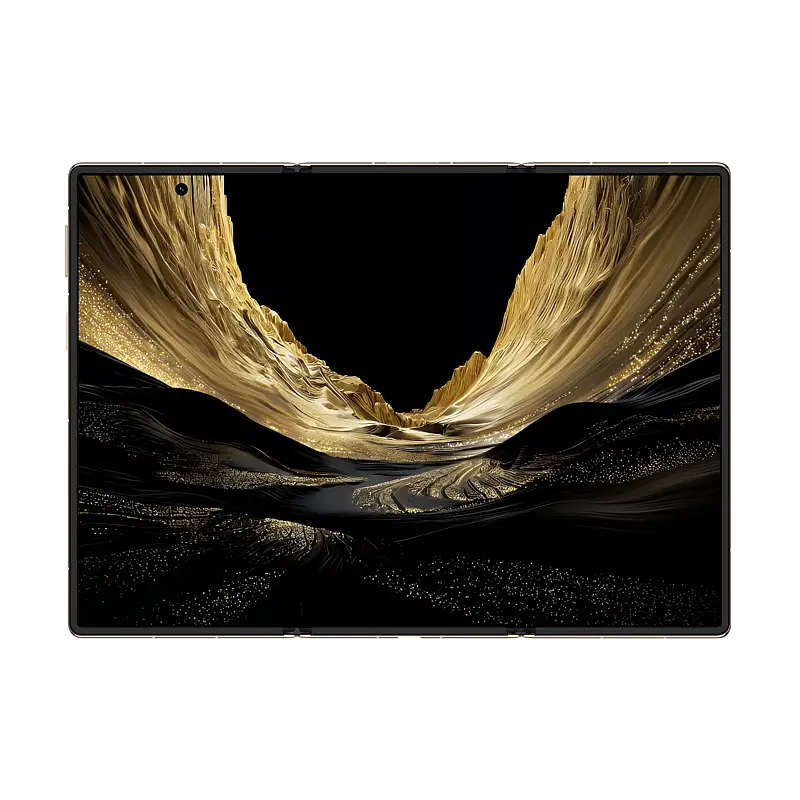

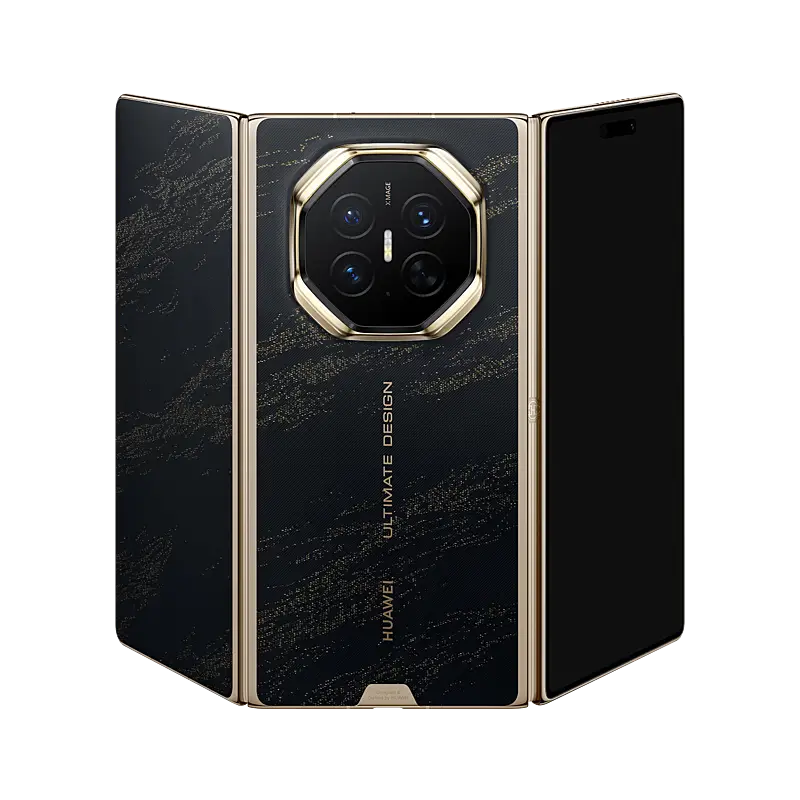

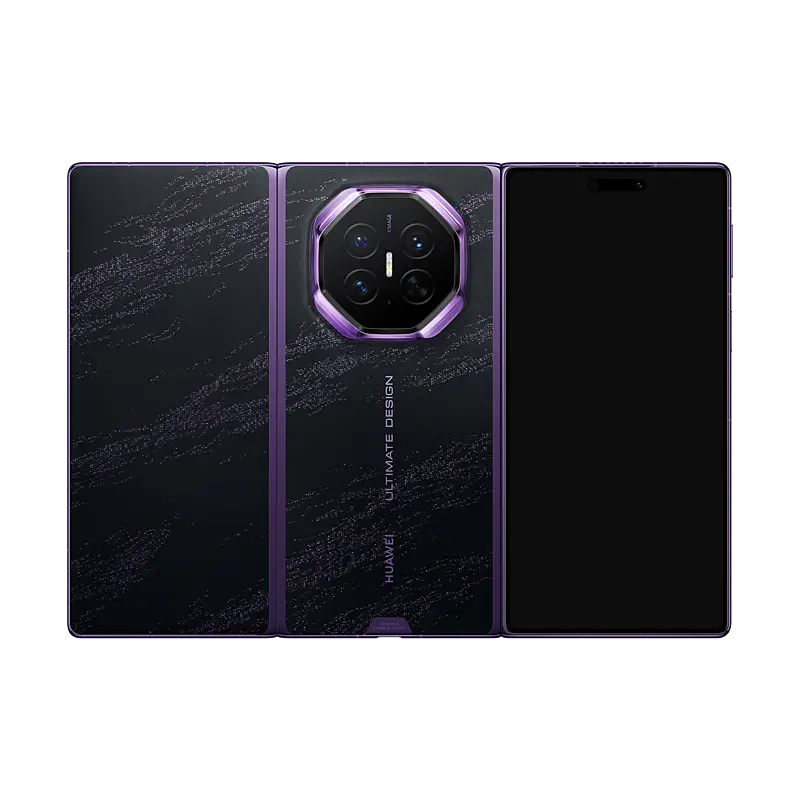

A workspace that unfolds to 10.2 inches

The inner OLED screen provides a larger area for supported multitasking, drawing, and document comparison, while the cover display remains usable with the phone folded. Both displays support 1.07 billion colors and the P3 color gamut. The inner display uses a flexible UTG structure; the cover uses Xuanwu Kunlun Glass.

The folding sequence matters: close the side without the volume buttons first. Do not fold the phone at −10°C or below, remove its original inner-screen protective layer, or add another film. Keep sharp objects and other items out from between the panels.

Standard or Privacy Screen

Standard versions use a 1–90 Hz adaptive inner display. The 1TB Privacy Screen and 2TB Privacy Screen + Stylus Set add hardware privacy protection and a 1–120 Hz adaptive inner display. Privacy protection does not cover the bottom viewing direction toward the USB port. Shortcut controls, application protection, and GPS-based privacy reminders require their applicable settings to be enabled.

Variable aperture and periscope photography

The 50MP main camera adjusts its physical aperture continuously from F1.49 to F4.0 and includes optical stabilization. A 40MP ultrawide camera and 50MP stabilized periscope telephoto provide different framing options, supported by a third-generation Red Maple original-color camera. Approximately 3.5× optical zoom, 7× optical-quality zoom, and up to 100× digital zoom are distinct capabilities.

Video recording supports up to 4K, with HDR Vivid and Log modes among the published options. The 1080p 960 fps slow-motion mode uses AI frame interpolation. AI pose suggestions work in Photo and Portrait within the 4× focal range; composition assistance must be enabled.

HarmonyOS and the stylus package

HarmonyOS 7.0 includes large-screen tools such as supported three-window multitasking, document comparison, and screen-recording annotations. Annotations require the HUAWEI M-Pen 3 Mini, which is included in the 2TB stylus set and sold separately for other versions. Some software functions require a HOTA update, a network connection, or supported applications.

IVORION keeps the screen and package choices distinct so the included accessories are clear before purchase. The 2TB set is offered in Brocade Purple and adds a stylus, its charging protective case, and related accessories; Standard and 1TB Privacy Screen packages have their own contents listed in Specifications.

Charging and regional connections

The 5600 mAh typical battery supports up to 66W HUAWEI SuperCharge and up to 50W wireless charging. Wireless charging requires a separately purchased compatible HUAWEI charger and an appropriate SuperCharge kit. With an official protective case fitted, rotate its stand to the horizontal position for wireless charging.

eSIM and satellite functions depend on carrier services. BeiDou messaging is limited to mainland China, excluding Hong Kong, Macao, and Taiwan, and requires activation and an open, unobstructed environment. USB 3.1 Gen 1 data transfer requires a compatible cable; the supplied cable supports USB 2.0.

Configurations and regional details

Storage labels show physical RAM first and internal storage second: 16GB/512GB, 16GB/1TB, and 16GB/2TB. Standard versions are offered with 512GB or 1TB in Dark Black, Bright White, and Brocade Purple. Privacy Screen is offered with 1TB in those three colors; Privacy Screen + Stylus Set is offered with 2TB in Brocade Purple only. The CN Version uses HarmonyOS 7.0, with the software limitation stated above.

Specifications

Identity and configurations

• Model: HUAWEI Mate XT 2 ULTIMATE DESIGN; LAP-AL10. Mainland-China version (CN Version).
• RAM: 16GB on every configuration; available memory is lower because system software occupies space.

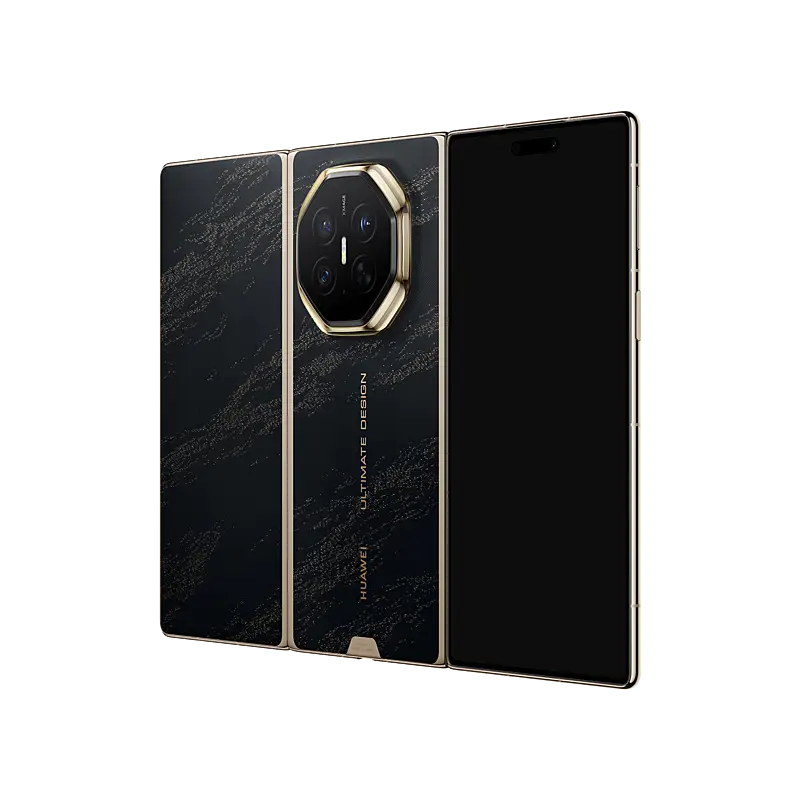

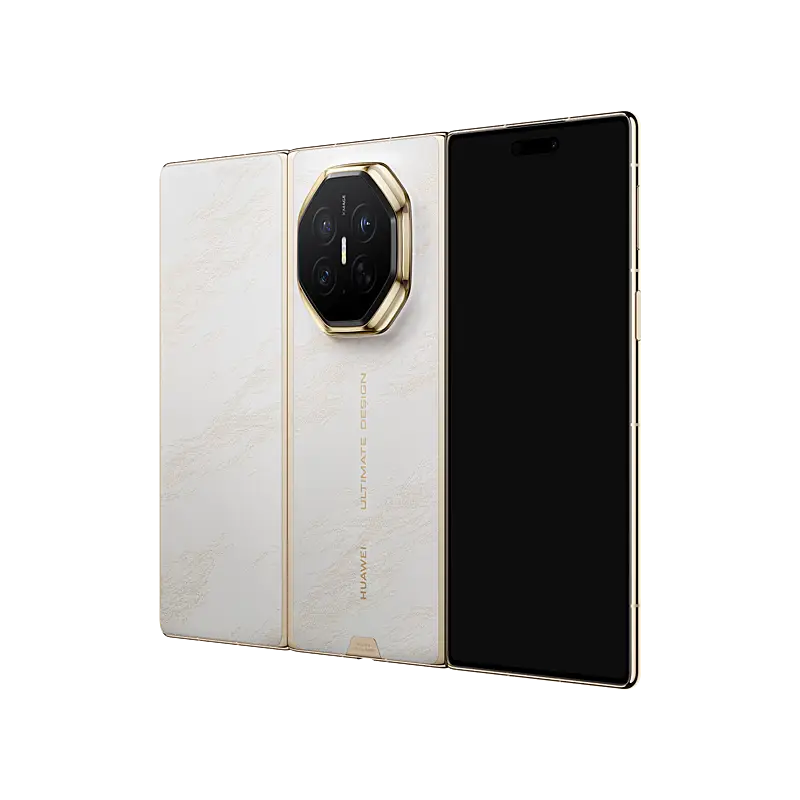

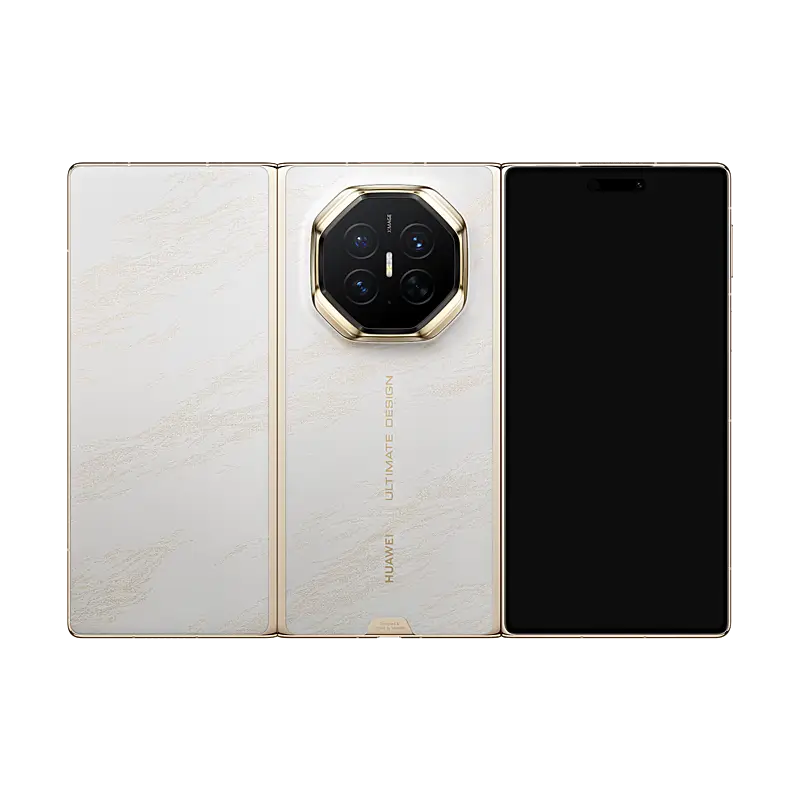

• Standard screen: 512GB or 1TB storage; Dark Black, Bright White, or Brocade Purple.
• Privacy Screen: 1TB storage; Dark Black, Bright White, or Brocade Purple.

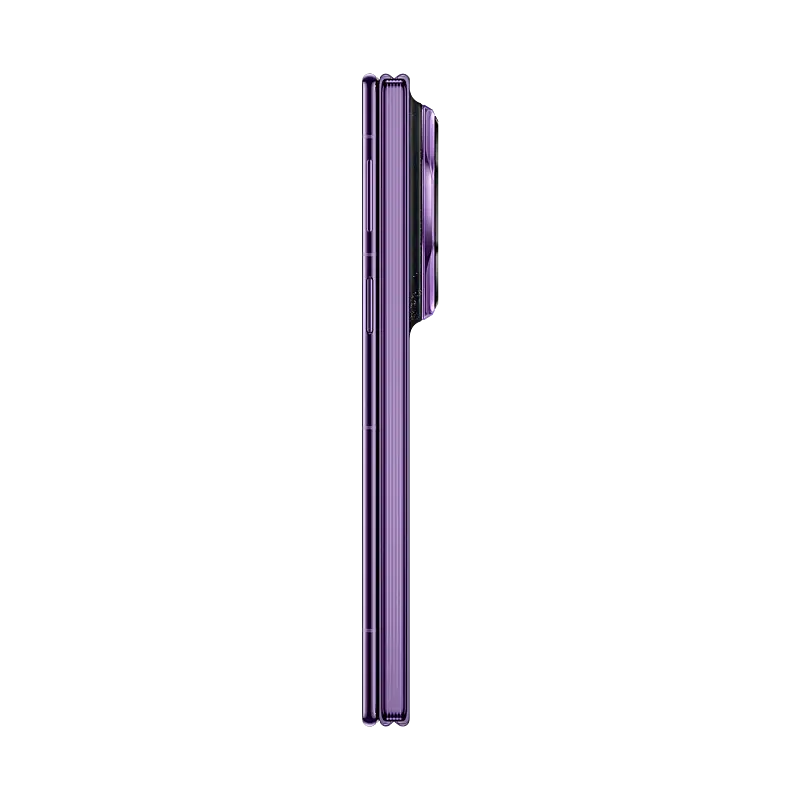

• Privacy Screen + Stylus Set: 2TB storage; Brocade Purple only.
• Storage expansion: Not supported; usable internal storage is lower than the stated capacity.

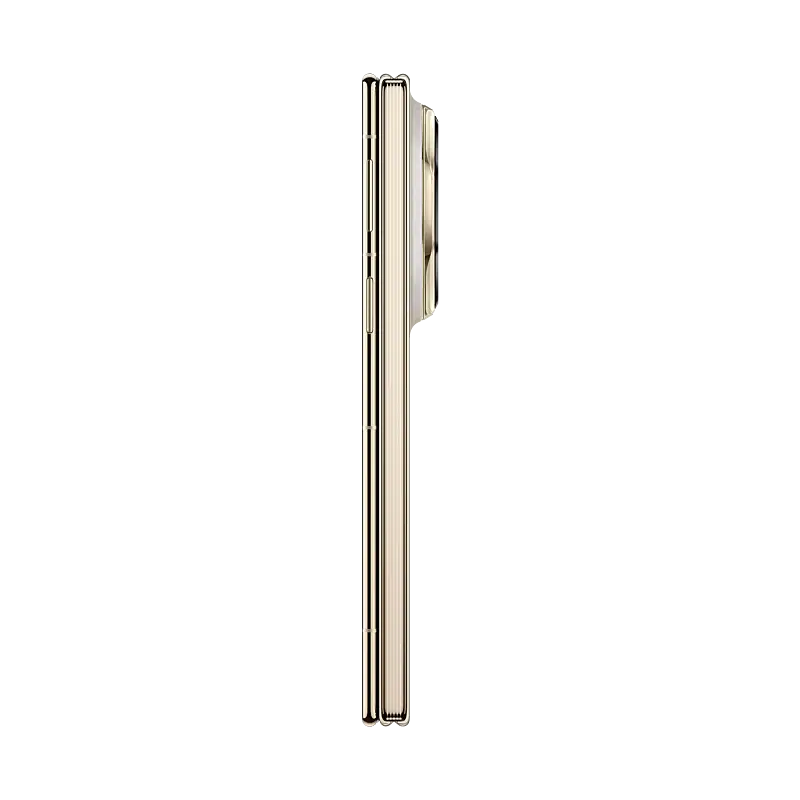

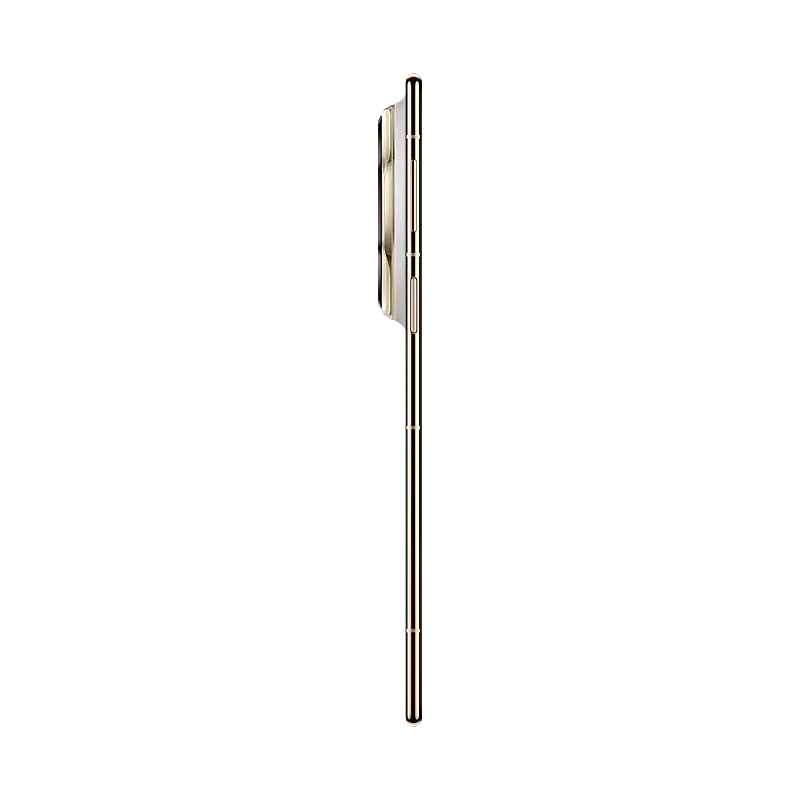

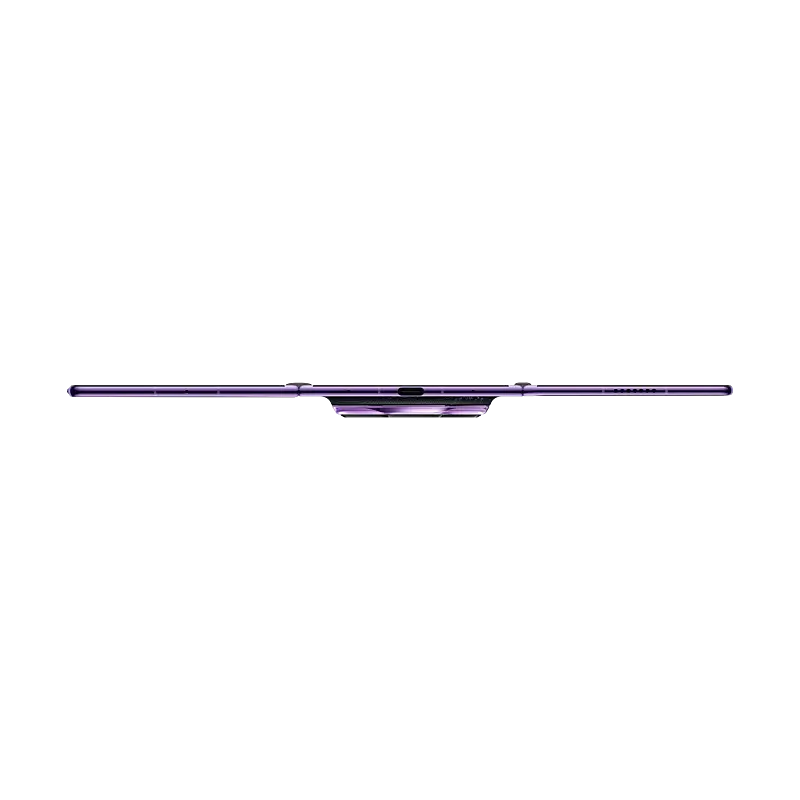

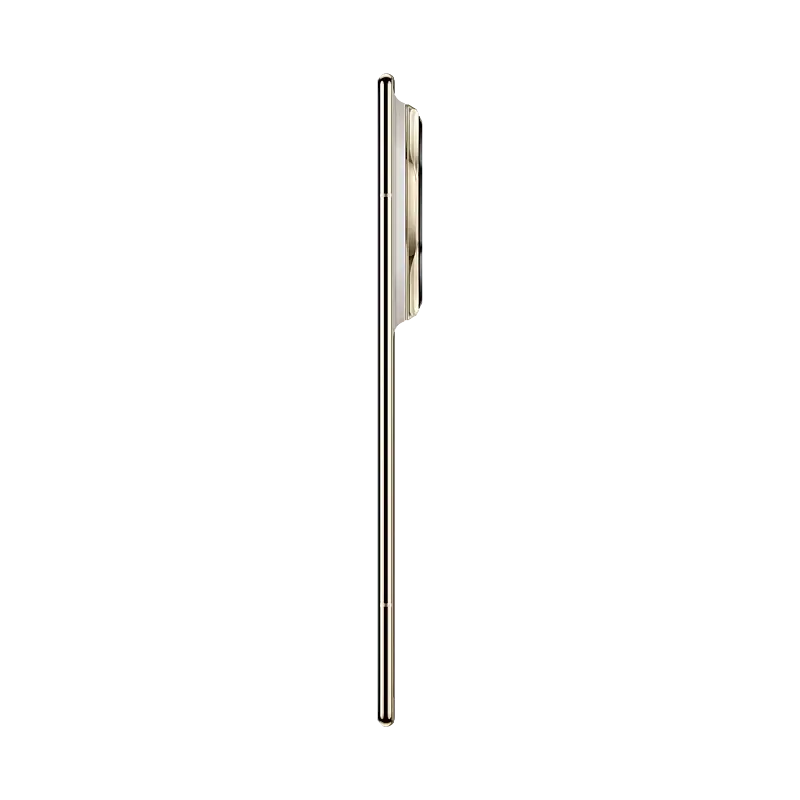

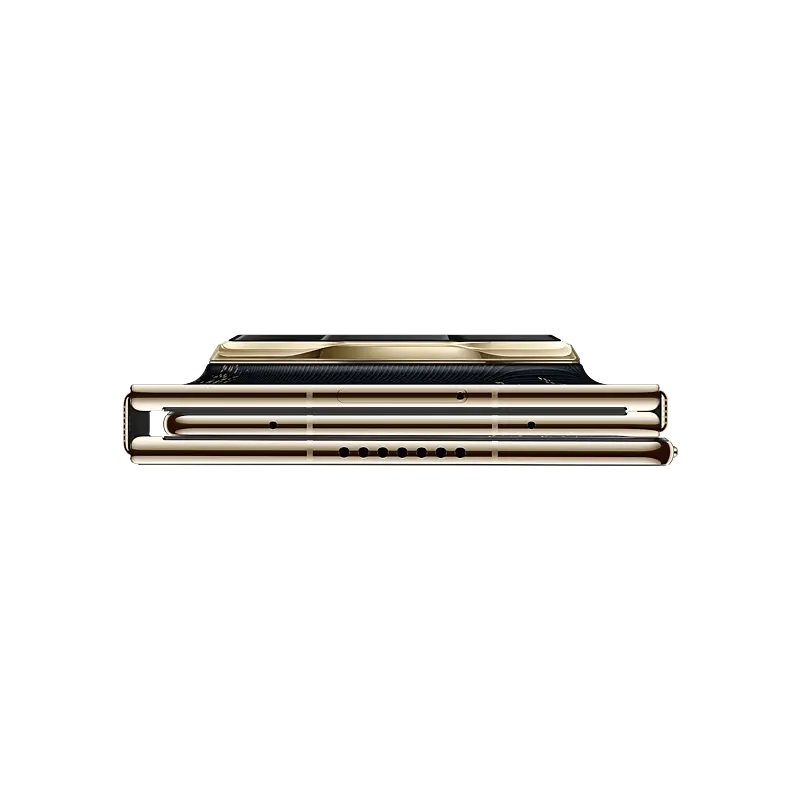

Dimensions and construction

• Length: 157.2 mm.

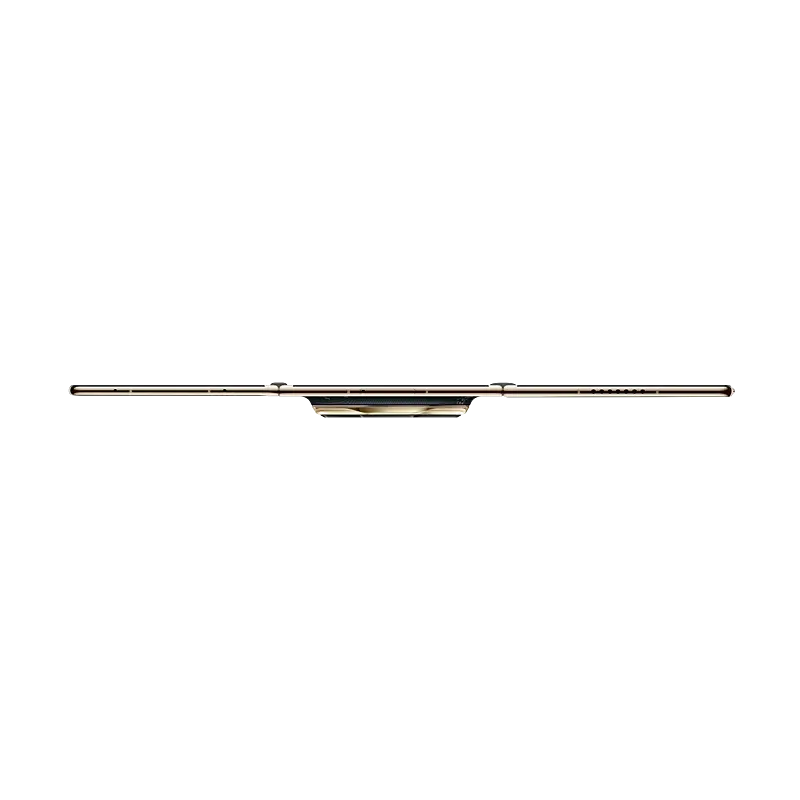

• Width: 77 mm folded; 219.2 mm fully unfolded.

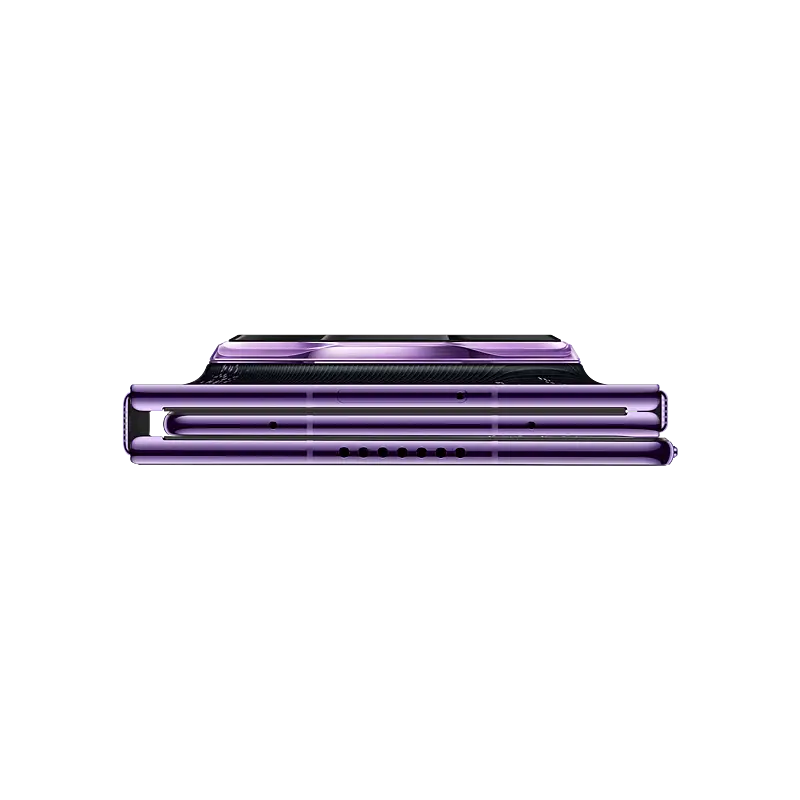

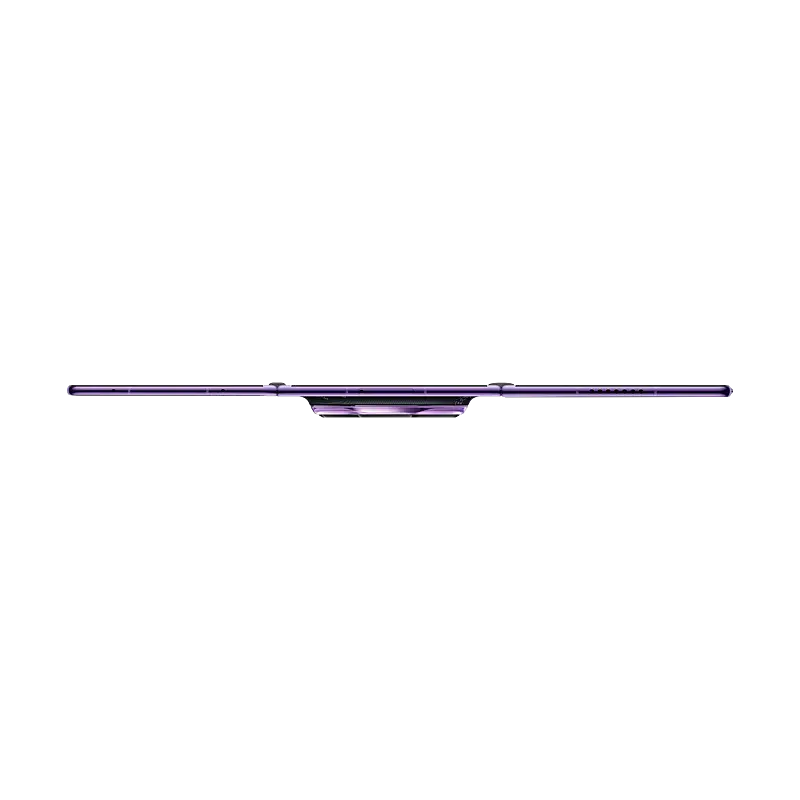

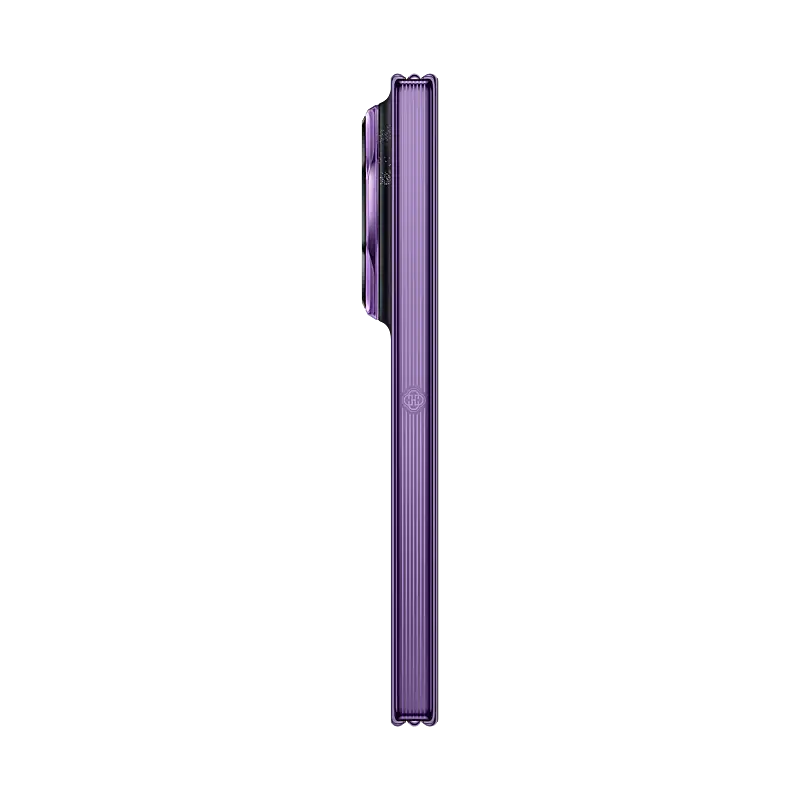

• Thickness: 12.3 mm folded, excluding screen frame and camera protrusion. Unfolded sections: 4.0 mm at the front-camera area, 3.69 mm at the rear-camera area, and 3.5 mm at the area without a camera; screen frames and applicable camera protrusions excluded.
• Device weight: Approximately 299 g with battery, excluding the screen surface layer; approximately 304 g including that layer. Actual weight may vary with configuration, manufacturing process, and measurement method.

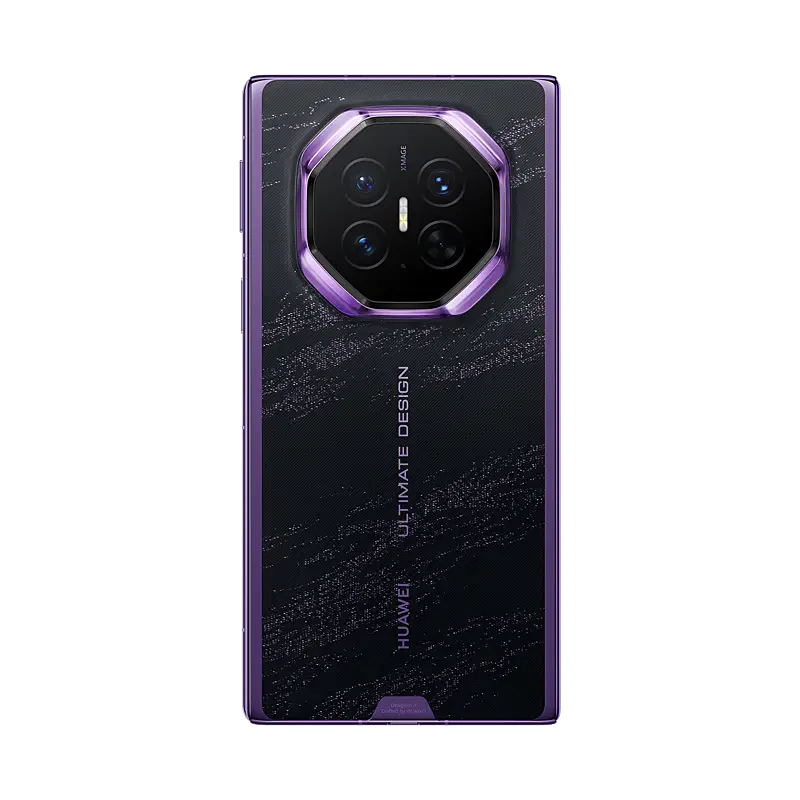

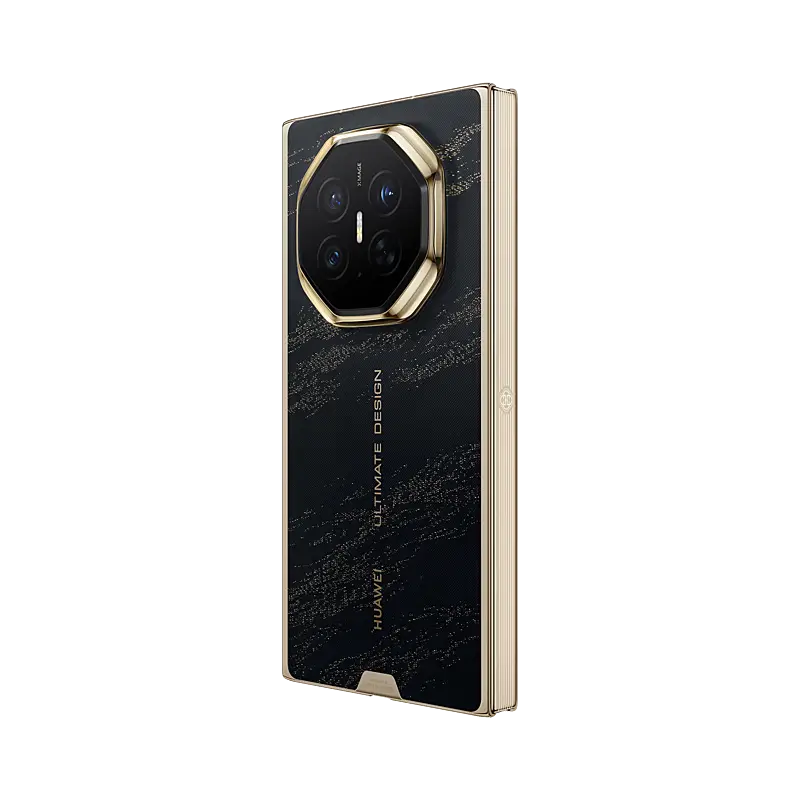

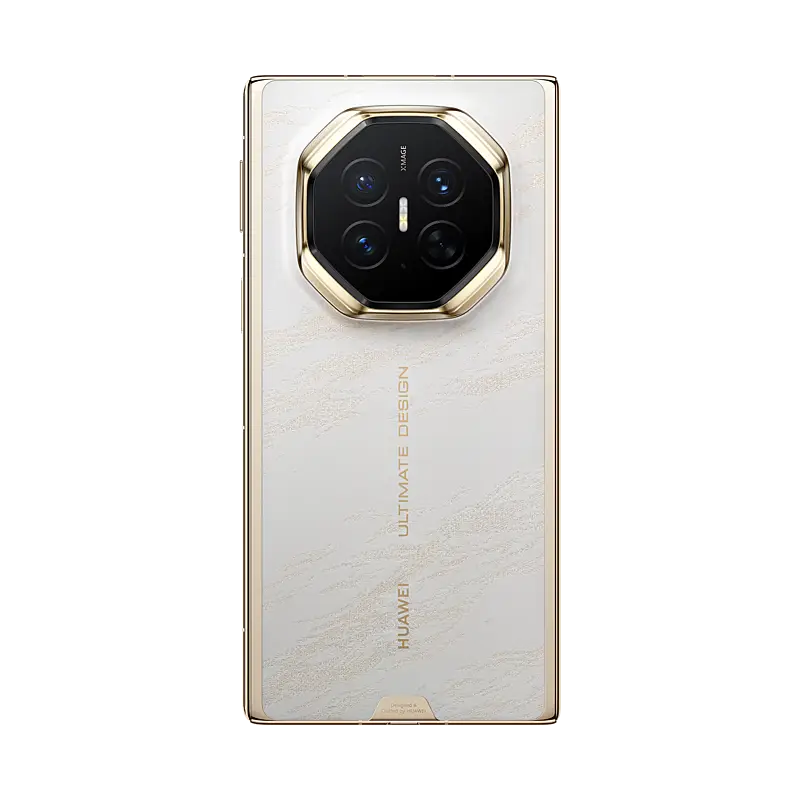

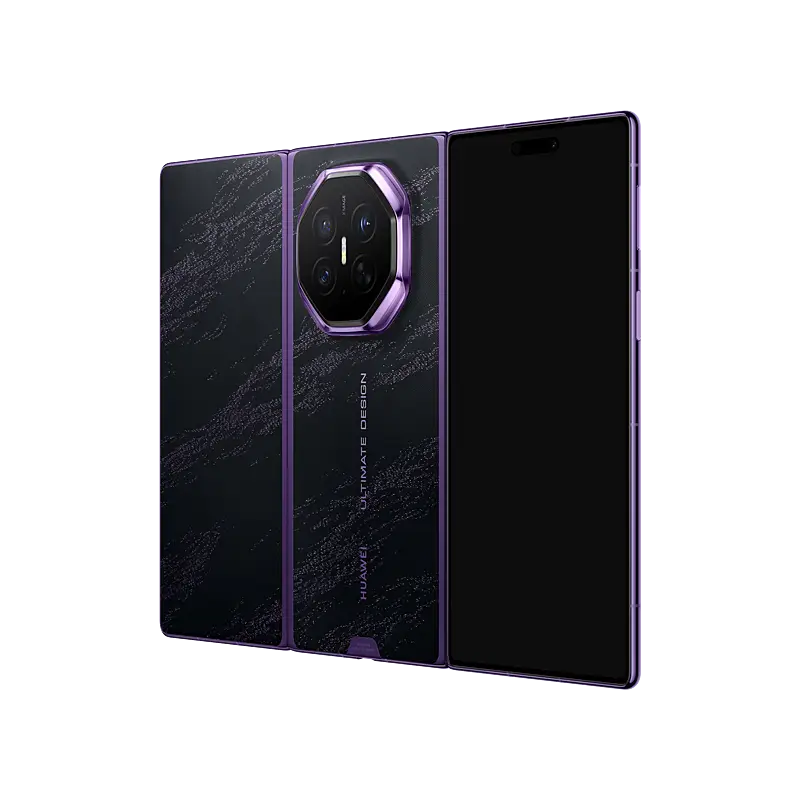

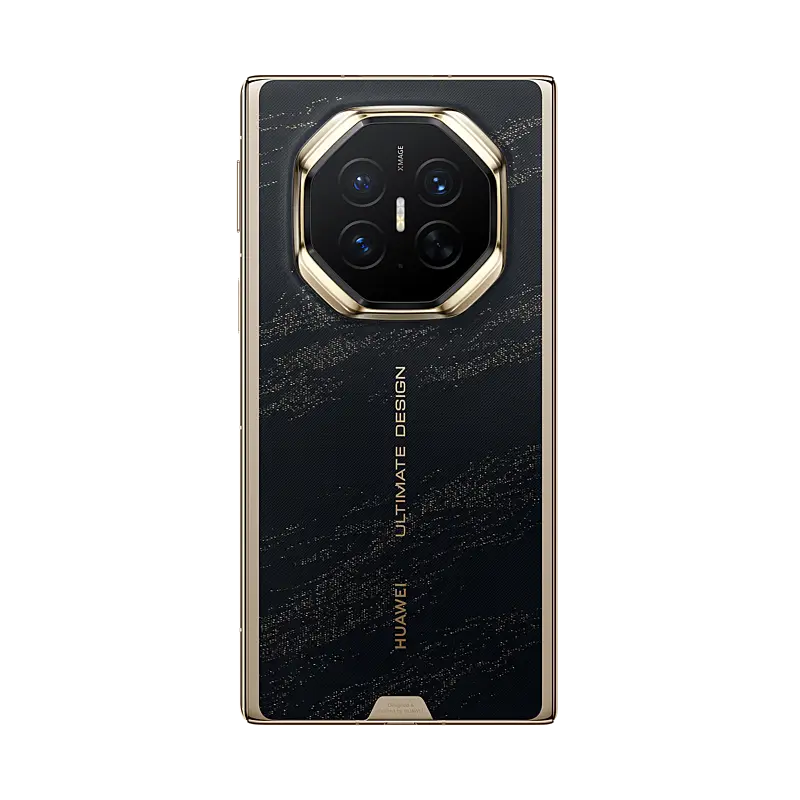

• Materials: Cloud-patterned brocade-style back. The brocade decoration contains no real gold; the yttrium-crystal decoration is not a natural gemstone.

Display

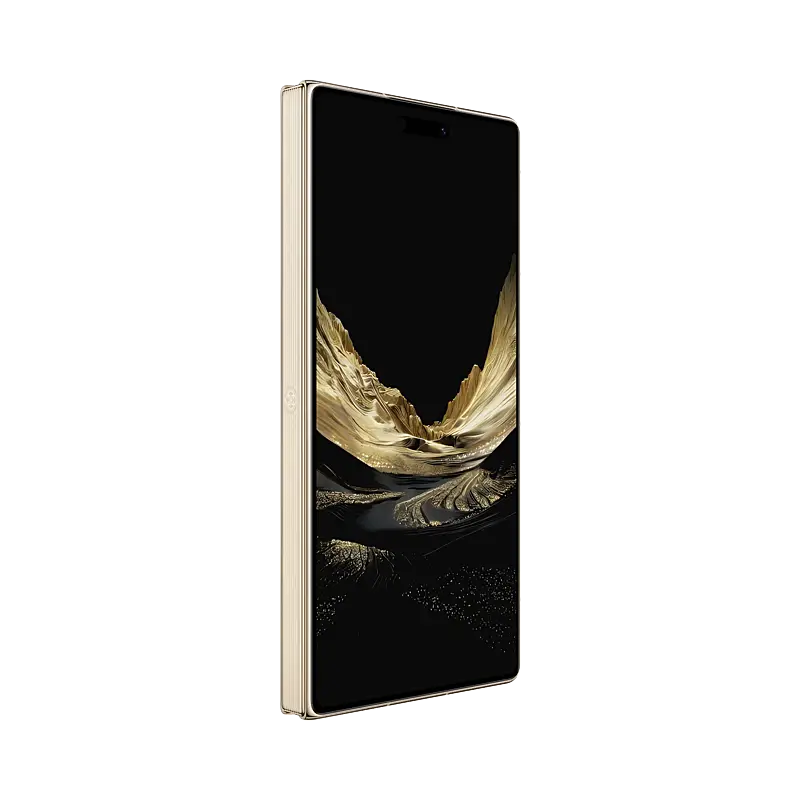

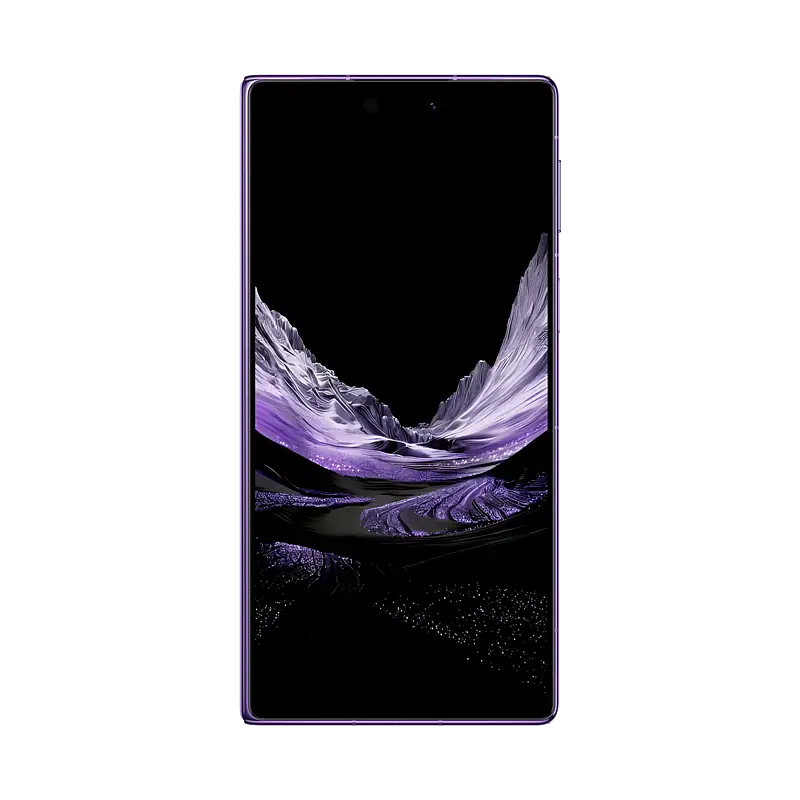

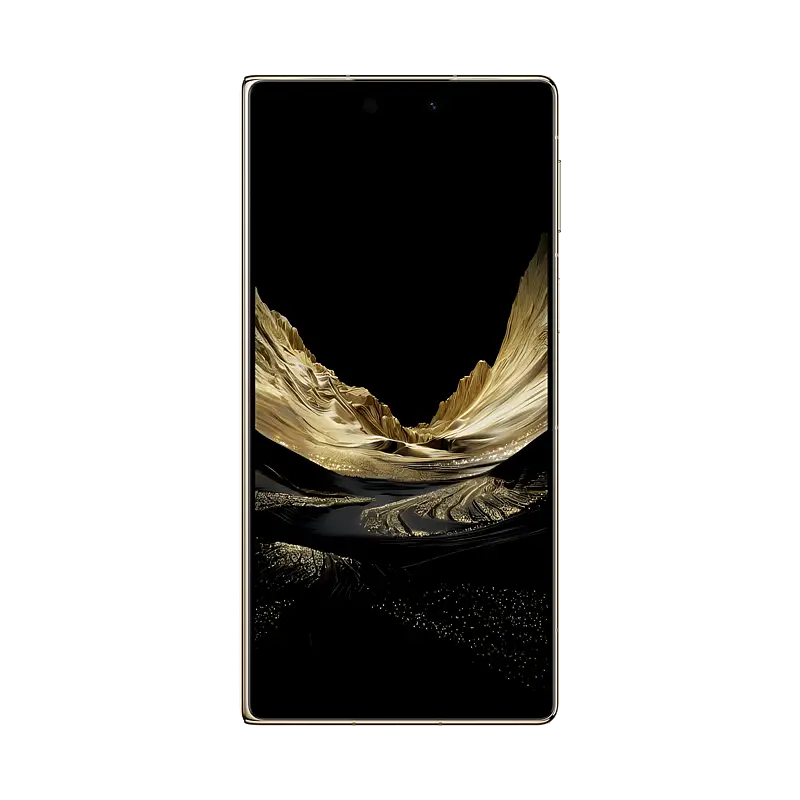

• Sizes: 6.5-inch cover display; 10.2-inch unfolded inner display. Rectangular diagonal measurements; rounded corners reduce actual viewable area.
• Color: Both displays: 1.07 billion colors and P3 wide color gamut.
• Cover panel: OLED; 1–120 Hz LTPO adaptive refresh; 1440 Hz PWM dimming; 300 Hz touch sampling.
• Standard inner panel: OLED; 1–90 Hz LTPO adaptive refresh; 1440 Hz PWM dimming; 240 Hz touch sampling.
• Privacy versions: inner panel: OLED with hardware privacy protection; 1–120 Hz LTPO adaptive refresh; 1440 Hz PWM dimming; 240 Hz touch sampling. Applies to 1TB Privacy Screen and 2TB Privacy Screen + Stylus Set.
• Privacy limitation: The bottom/USB-port viewing direction is not protected. Privacy shortcuts and app selection require setup; location-based reminders require manual activation and GPS.
• Resolution: Cover: 2442 × 1140 pixels. Unfolded inner: 2232 × 3184 pixels. Rectangular values; actual effective pixels are slightly fewer.
• Pixel density: Cover: 412 ppi. Inner: 382 ppi.
• Glass: Cover: Xuanwu Kunlun Glass. Inner: foldable flexible display with UTG glass.

Processor and software

• Processor: Kirin 9050 Pro.
• Operating system: HarmonyOS 7.0; Huawei terminal HarmonyOS smart-device embedded operating system software V7.0.

Rear cameras

• Main: 50MP ultra-high-dynamic-range camera; 1/1.28-inch RYYB sensor; F1.49–F4.0 continuously variable aperture; OIS; 23 mm equivalent focal length.
• Ultrawide: 40MP; F2.2; RYYB sensor; 13 mm equivalent focal length.
• Periscope telephoto: 50MP ultra-large-aperture periscope telephoto camera; F2.2; RYYB sensor; OIS; 81 mm equivalent focal length.
• Color camera: Third-generation Red Maple original-color camera.
• Zoom: Approximately 3.5× optical zoom; 7× optical-quality zoom; up to 100× digital zoom.
• Focus and flash: Autofocus; LED flash.
• Photo resolution: Up to 8192 × 6144 pixels; varies by shooting mode.
• Video: Up to 4K (3840 × 2160); AIS stabilization; 1080p at 960 fps slow motion uses AI frame interpolation. Resolution and performance vary by mode.
• Shooting modes: XMAGE styles; XMAGE smart shooting; AI pose suggestions; AI composition assistance; starburst; cinematic effects; Hitchcock effect; stage mode; telephoto extender mode; ultra-clear panorama; AI clarity enhancement; Super Night; moon capture; fireworks; starry sky; starry-sky portraits; AI moving photos; HDR Vivid video; Log video; RAW photos; snapshot; motion stabilization; high-quality mode; Super Macro; macro video; macro picture-in-picture; telephoto picture-in-picture; high-resolution mode; time-lapse; ultrawide; wide-aperture blur; portrait; Pro; slow motion; light painting; watermark; AI Master Photography; smile capture; voice shutter; timer; burst; rear-camera selfies.
• AI shooting conditions: Pose suggestions operate in Photo and Portrait within the 4× focal range; composition assistance must be enabled. Recommendations depend on the scene.

Front cameras

• Cameras: Cover and inner: each 8MP ultrawide, F2.4.
• Photo resolution: Up to 3264 × 2448 pixels; varies by mode.
• Video resolution: Up to 3840 × 2160 pixels; varies by mode.
• Shooting modes: XMAGE styles; AI pose suggestions; AI moving photos; HDR Vivid video; portrait; time-lapse; smile capture; mirrored selfies; voice shutter; timer.

Battery and charging

• Battery: 5600 mAh typical; 5450 mAh rated. Built in and non-removable.
• Wired charging: Up to 66W Huawei SuperCharge (11V/6A). Compatible SuperCharge profiles: 20V/3.25A, 10V/4A, 10V/2.25A, 4.5V/5A, and 5V/4.5A; 9V/2A fast charging also supported. Requires a Huawei SuperCharge charging kit rated 66W or higher.
• Wireless charging: Up to 50W Huawei wireless SuperCharge. Requires a separately purchased compatible Huawei vertical wireless charger or wireless car charger (Max 50W/80W) and a Huawei SuperCharge kit rated 66W or higher.
• Reverse wireless charging: Supported with devices tested by Huawei. Actual charging power varies with use conditions.
• Case position for wireless charging: With an official protective case fitted, rotate the stand to the horizontal position.

Dust and water resistance

• Rating: IP58 and IP59 under GB/T 4208-2017 laboratory tests. Resistance is not permanent and can decline with wear; not professional waterproof equipment. Do not charge while wet. Damage caused by immersion in liquid is excluded from the manufacturer’s stated warranty coverage. Consult the user manual for cleaning and drying instructions.
• IP58 condition: Static fresh water at 2 m for 30 minutes; water/device temperature difference no more than 5°C.
• IP59 test conditions: Device horizontal with screen upward; turntable 5 ± 1 rpm; nozzle angles 0°, 30°, 60°, and 90°; water flow 15 ± 1 L/min; water temperature 80 ± 5°C; 30 seconds at each position.

Cellular connectivity

• Supported technologies: GSM, HSPA, LTE, and 5G.
• Reported GSM frequencies: 850, 900, 1800, and 1900 MHz.
• Reported HSDPA frequencies: 800, 850, 900, 1700 (AWS), 1900, and 2100 MHz.
• 5G modes: SA and NSA. Cellular technology and frequency information is reported by GSMArena for LAP-AL10; availability depends on the carrier and market.

SIM and connections

• SIM: Two nano-SIM slots; up to two phone numbers can operate simultaneously.
• eSIM: Up to two stored eSIM numbers. Requires activation of the carrier’s relevant eSIM service. Up to four numbers including two physical SIMs; two numbers can operate simultaneously as two physical SIMs, one physical SIM plus an eSIM, or two eSIMs.
• Wi-Fi: 2.4 GHz and 5 GHz; IEEE 802.11a/b/g/n/ac/ax/be; 2 × 2 MIMO; EHT160; 8 Spatial-stream Sounding MU-MIMO. Requires a compatible router.
• Bluetooth: Bluetooth 6.0; Bluetooth Low Energy; SBC, AAC, LDAC, and L2HC audio support.
• NearLink: Supported.
• Satellite services: Tiantong satellite calls and paging; two-way BeiDou satellite messages. Tiantong requires an appropriate carrier service and local deployment.
• BeiDou limitations: Mainland China only, excluding Hong Kong, Macao, and Taiwan; use in an open unobstructed area. First use requires ground-network activation through MeeTime or the carrier’s BeiDou satellite SMS service. Picture messages require MeeTime, use lossy compression, and are bandwidth limited; editable text length is also limited. Do not use satellite communication when aircraft doors are closed. Feature availability and usage rules follow Huawei’s current official information and testing arrangements.

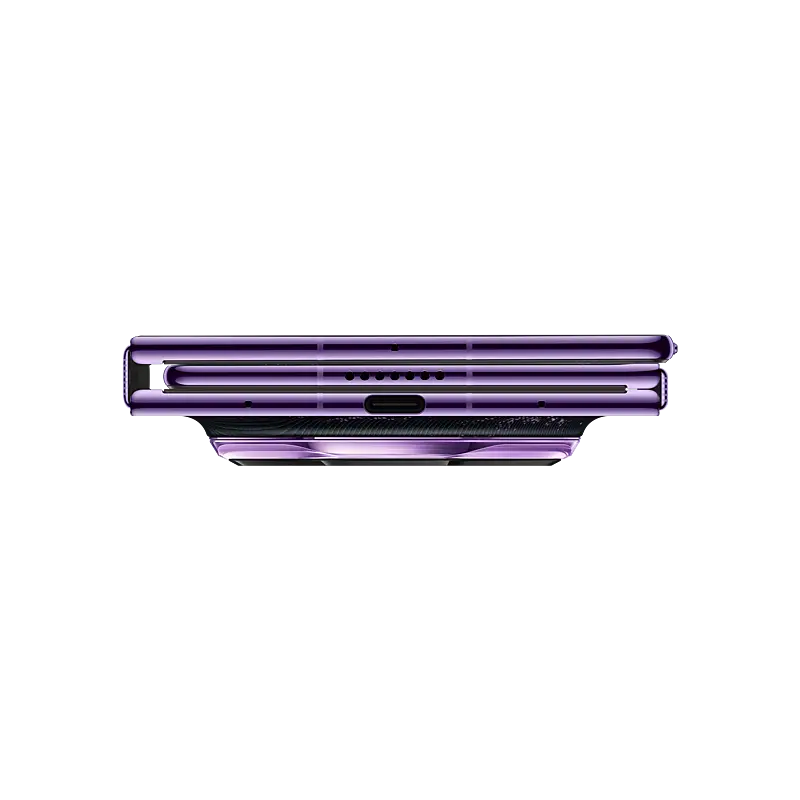

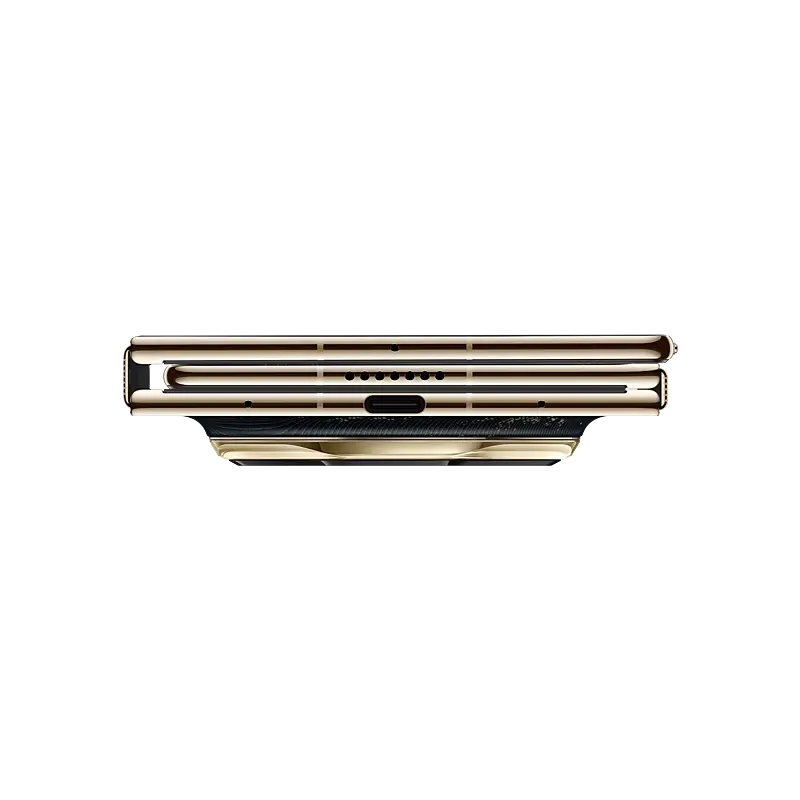

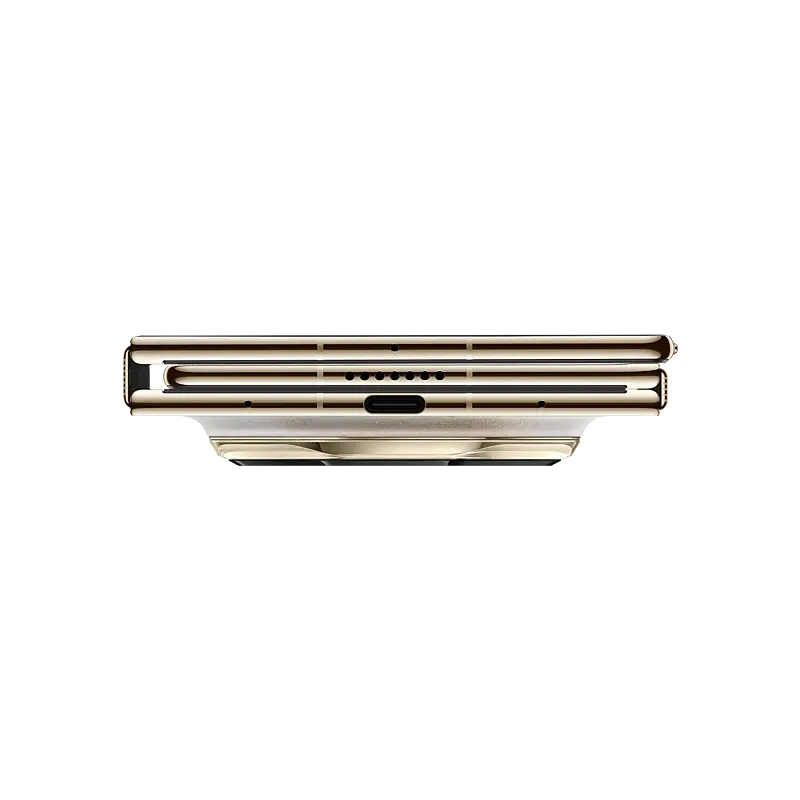

• Data port: USB Type-C, USB 3.1 Gen 1; a compatible USB 3.1 Gen 1 cable is required. Supplied cable supports USB 2.0.
• Headphones: USB Type-C digital headphones; other headphones require a Huawei USB Type-C to 3.5 mm digital audio adapter.
• Finding the phone: Online, offline, and powered-off finding, including powered-off ringing.
• NFC: Reader mode and card emulation: Huawei Wallet, SIM payments, and HCE payments. SIM payments require the SIM in slot 1.

Positioning

• Systems: GPS L1 + L5; AGPS; GLONASS; BeiDou B1I + B1C + B2a + B2b; GALILEO E1 + E5a + E5b; QZSS L1 + L5; NavIC.

Sensors

• Sensor set: Posture sensor; gravity sensor; infrared sensor; side fingerprint sensor; Hall sensor; gyroscope; compass; barometer; ambient light sensor; proximity sensor; camera laser-focus sensor; color-temperature sensor.

Audio and media

• Audio: Huawei Histen effects; stereo sound. Formats: MP3, MP4, OGG, AMR, WAV, FLAC, AAC.
• Video format: MP4.

Software features

• Published feature set: ECG analysis; screen-recording annotations; Music Creation app; GoPaint; Xiaoyi offline gallery organization; 3D spatial wallpapers; close circle; immersive light effects; Xingdun anti-fraud protection; digital identity; AI creative inspiration; XMAGE smart shooting; AI composition; AI pose suggestions; 3D dynamic photos; split-screen Xiaoyi queries; split-screen translation; split-screen navigation; Xiaoyi notes; document comparison; AI dynamic books; large-screen annotations; AI noise-reduced calls; outdoor exploration; extreme endurance settings; cinematic effects; AI moving photos; motion panning; AI one-tap video creation; Xiaoyi briefing; dancing pet function; interactive pets; Xiaoyi assistance; AI grip sensing; AI air transfer; AI Smart Control Key; AI call summaries; AI call translation; AI message following; Tiantong satellite calls and paging; two-way BeiDou messages; intelligent variable aperture with 10 physical aperture steps; Super Night; Super Macro; macro video; rear-camera selfies; HDR Vivid video; Xiaoyi voice; dynamic always-on display; SuperHub; smart payment; smart scanning; low-battery emergency mode; Super Device; Xiaoyi captions; cross-device clipboard; Super Privacy Mode; PrivateSpace; MeeTime calls; Multi-Screen Collaboration; smart screenshots; Xiaoyi vision; Huawei Share; wireless projection; App Twin; Password Vault.
• Updates and accessories: Xiaoyi offline gallery organization and 3D spatial wallpapers require a HOTA update. Annotations require the HUAWEI M-Pen 3 Mini. Three-window features are limited to supported apps; stylus is separately sold except in the 2TB stylus set.
• AI creation: Requires network connectivity and manual activation. Cloud image generation has usage limits; generated content is for reference.
• ECG: A 30-second signal is collected through electrodes on both side frames when unfolded. Analysis can indicate adult sinus rhythm, atrial fibrillation, premature ventricular beats, and premature atrial beats. Xiaoyi interpretation requires HOTA support and is AI-generated reference information, not a diagnosis or treatment basis. Keep electrodes clean and undamaged.

Use conditions

• Folding care: Fold the side without volume buttons first. Do not fold at −10°C or below. Do not remove the original inner-screen film or add another layer; avoid sharp objects and objects trapped between screen panels. Avoid pressing the inner front-camera area and folding regions, which contain precision components.

Box contents

• Standard and 1TB Privacy Screen: Phone with built-in battery ×1; Huawei SuperCharge charger ×1; USB Type-C cable ×1; rotating stand protective case ×1; quick guide ×1; SIM-eject tool ×1. Final contents subject to the supplied package.
• 2TB Privacy Screen + Stylus Set: Phone with built-in battery ×1; Huawei SuperCharge charger ×1; USB Type-C cable ×1; rotating stand protective case ×1; stylus charging protective case ×1; stylus ×1; stylus tip ×1; tip-removal clip ×1; phone quick guide ×1; stylus charging case quick guide ×1; stylus quick guide ×1; SIM-eject tool ×1. Final contents subject to the supplied package.

Specification values are theoretical laboratory results. Actual performance and values may vary with the device, software version, usage, and environment.
