HONOR Magic9 Pro Max (CN Version)

Important Notice: This is a Chinese-market model. It supports all major system languages, and the Google Play Store can be installed, although it is not pre-installed on the device. Please consider these software differences before purchasing.

Device models: WKL-AN20 applies to 12GB/256GB, 12GB/512GB, and 16GB/512GB. WKL-AN80 applies to 16GB/1TB, including the Photography Master Kit.

HONOR Magic9 Pro Max is a Chinese-market smartphone with dual 200MP rear cameras, a 6.8-inch LTPO OLED display, and an 8800mAh typical-capacity battery. IVORION offers four RAM and internal-storage pairs, with a standard package or a Photography Master Kit for the specified configuration. MagicOS 11 is based on Android 17; the regional software notice above applies to every offered configuration.

Key features

• Dual 200MP wide and periscope telephoto cameras with OIS, plus a 50MP autofocus ultrawide camera; maximum photo resolution requires High resolution mode.
• 6.8-inch LTPO OLED display with an adaptive 1–120Hz refresh rate, true 1.07 billion colors, and Dolby Vision; refresh behavior depends on the app.
• Snapdragon 8 Elite Extreme Gen 6 Mobile Platform with an eight-core CPU and Adreno 850 graphics.
• 8800mAh typical battery with up to 100W wired charging using the original charger and cable; up to 80W wireless charging requires a separately sold compatible charger.
• 55MP front camera, a 3D depth camera, 3D face recognition, and front video recording at up to 4K 60 fps.
• IP68, IP69, and IP69K dust and water resistance under laboratory test conditions; protection can diminish with wear, and charging while wet is prohibited.

Dual 200MP cameras and ARRI CINEMA

The wide and 3.5x optical telephoto cameras both use 200MP sensors and optical image stabilization, while the 50MP ultrawide adds autofocus for close and wide compositions. The dedicated HONOR Imaging Chip H1 and ARRI CINEMA Mode provide additional tools for shaping video. ARRI CINEMA records up to 4K at 60 fps with 14 preset ARRI Looks and an 87-Look library that requires download and import; standard rear video recording supports up to 4K at 120 fps.

A 55MP front camera works alongside a 3D depth camera for selfies and 3D face recognition. Front video offers 0.8x and 1x framing, electronic stabilization, and audio focus. Photo resolution, zoom behavior, and available recording settings depend on the selected mode; the highest rear photo resolution uses High resolution mode.

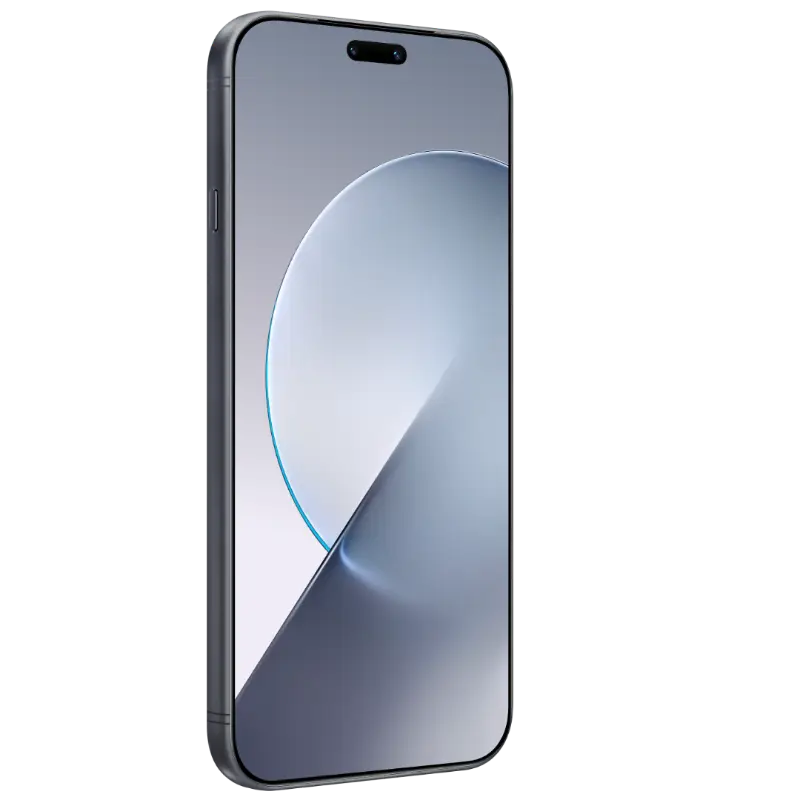

A 6.8-inch display with adaptive refresh

The flat 2.5D OLED display combines LTPO refresh control with a 1320 × 2868 resolution, a DCI-P3 wide color gamut, and support for HDR pictures and video. Its 1–120Hz refresh range adapts to compatible content and apps, with 1Hz, 60Hz, 90Hz, and 120Hz modes. HONOR Anti-Scratch NanoCrystal Shield protects the display, while the body uses an all-metal unibody design.

Display settings include 4320Hz high-frequency PWM dimming at low brightness, personalized display controls, and circadian and natural-tone options. These visual-comfort features are settings for everyday viewing; the phone is not a medical device and does not provide treatment.

Snapdragon performance and MagicOS 11

The Snapdragon 8 Elite Extreme Gen 6 platform combines two Prime CPU cores with six Performance cores and Adreno 850 graphics. MagicOS 11, based on Android 17, brings YOYO assistance, translation tools, multi-window controls, and device collaboration features. Cross-device transfer requires HONOR Connect and supported devices, while some software and imaging features require an OTA update.

An 8800mAh battery and flexible charging

The battery is rated at 8600mAh, with a typical capacity of 8800mAh. Wired HONOR SuperCharge reaches up to 100W with the original charger and cable; the standard package includes a HONOR SuperCharge charger and a USB Type-C cable. Wireless HONOR SuperCharge supports up to 80W with a separately purchased HONOR wireless charger rated for at least 80W.

Wired reverse charging supports up to 27W with devices tested by HONOR, and wireless reverse charging is also supported. Charging power varies with the operating conditions. Do not charge the phone while it is wet; its dust and water resistance can decline through normal wear.

Connections with clear accessory requirements

Wi-Fi connectivity includes Wi-Fi 7, with Wi-Fi 8 and 5GHz 2×4 MIMO requiring an OTA update. Wi-Fi 7 and Wi-Fi 8 each require a corresponding compatible router. Bluetooth 6.3 supports LE Audio, Auracast, and a broad selection of audio codecs.

The USB Type-C connection supports DisplayPort 1.2, wired display output, and USB 3.2 Gen 1 data transfer. USB 3.2 Gen 1 requires a compatible cable purchased separately; the included cable supports USB 2.0. The infrared remote transmitter does not include a learning function.

Configurations and regional details

At IVORION, the Standard package is offered in 12GB/256GB, 12GB/512GB, 16GB/512GB, and 16GB/1TB, each in Moss Green, Shadow Black, or Glacier Silver. In the Storage selector, the first capacity is physical RAM and the second is internal storage. The Photography Master Kit is offered only as 16GB/1TB in Shadow Black and adds the imaging accessories listed below; those accessories are not included with Standard.

This is the CN Version for the mainland-China market. Cellular service and eSIM activation depend on the carrier and its deployment; contact your intended carrier about supported services before choosing a plan. The phone can store up to two eSIM numbers, and using two China Telecom SIMs requires VoLTE service on the secondary card.

Specifications

Identity and configurations

• Brand and model: HONOR Magic9 Pro Max; CN Version for mainland China. WKL-AN20: 12GB/256GB, 12GB/512GB, and 16GB/512GB. WKL-AN80: 16GB/1TB, including the Photography Master Kit.
• RAM and internal storage: 12GB/256GB = 12GB physical RAM + 256GB internal storage; 12GB/512GB = 12GB physical RAM + 512GB internal storage; 16GB/512GB = 16GB physical RAM + 512GB internal storage; 16GB/1TB = 16GB physical RAM + 1TB internal storage. Usable capacity is lower because software occupies space.
• Memory type: LPDDR5X RAM.

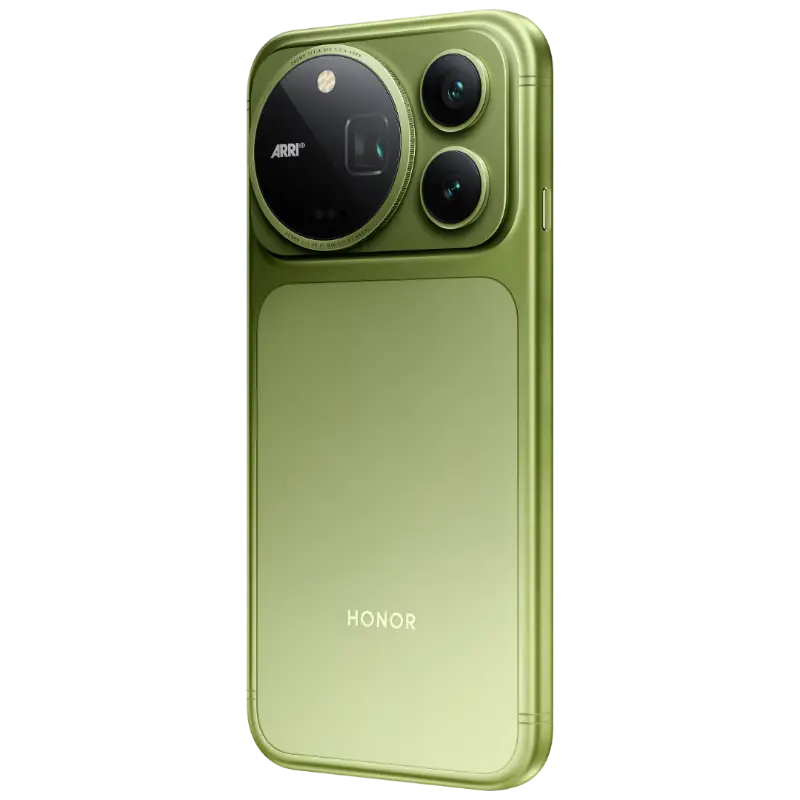

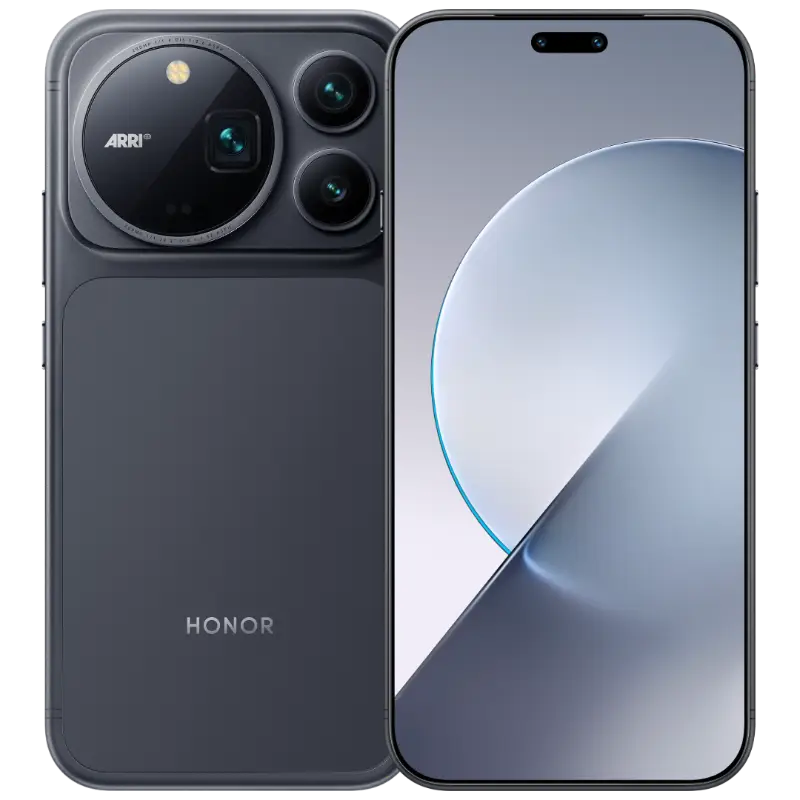

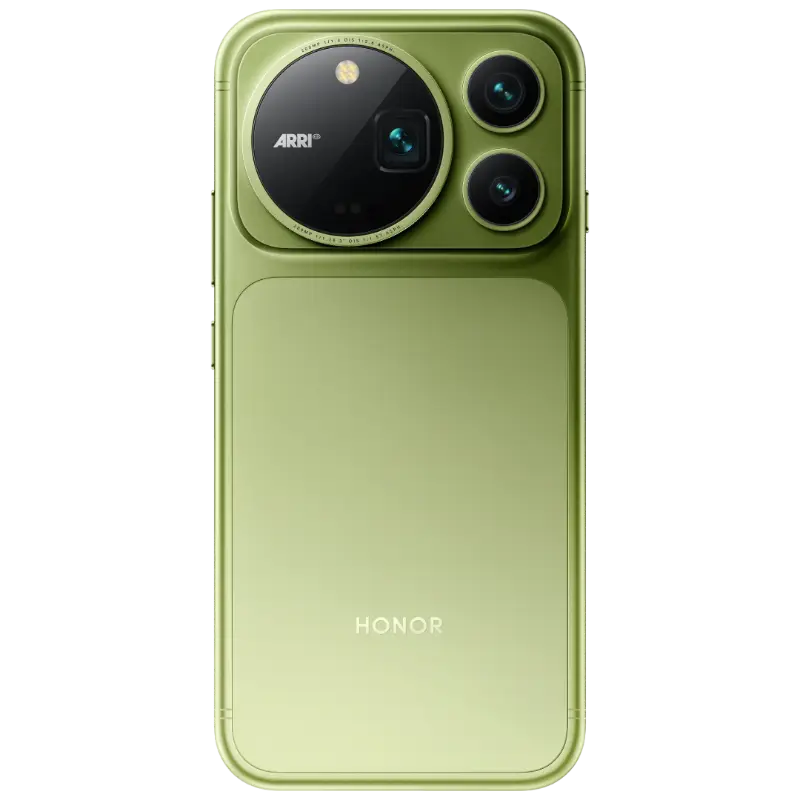

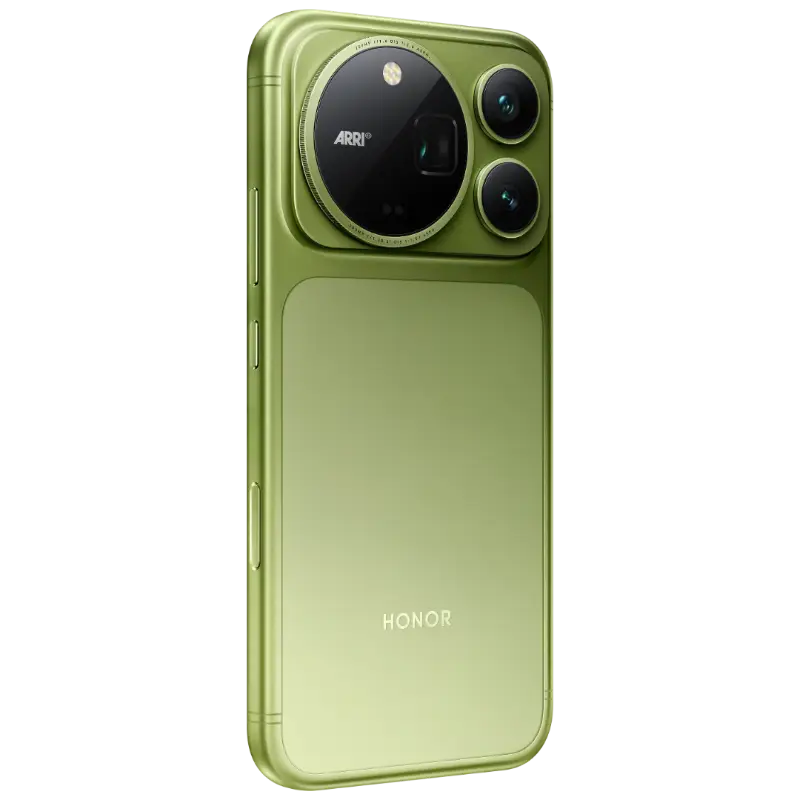

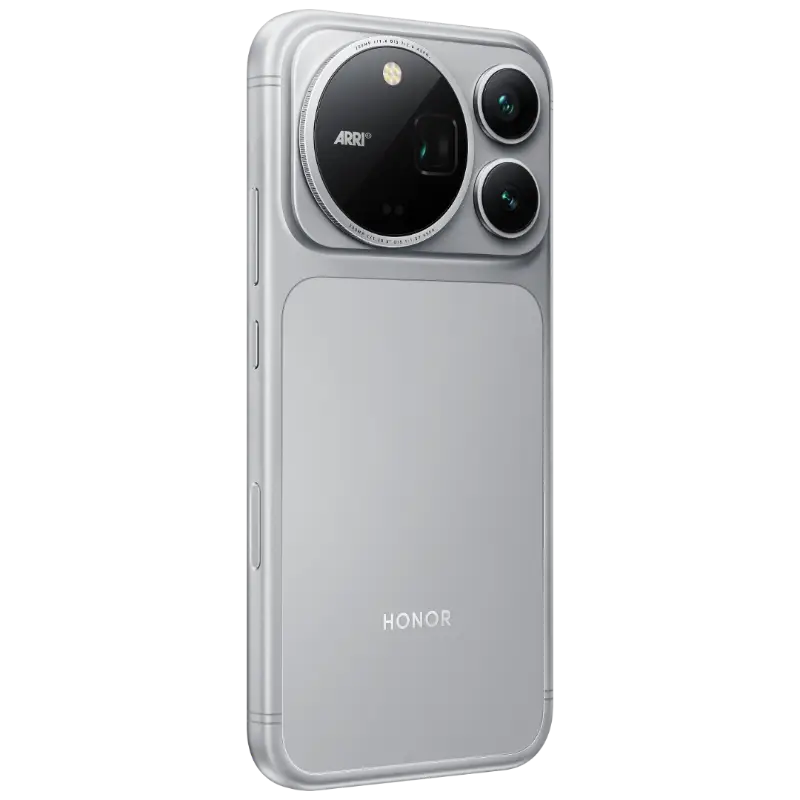

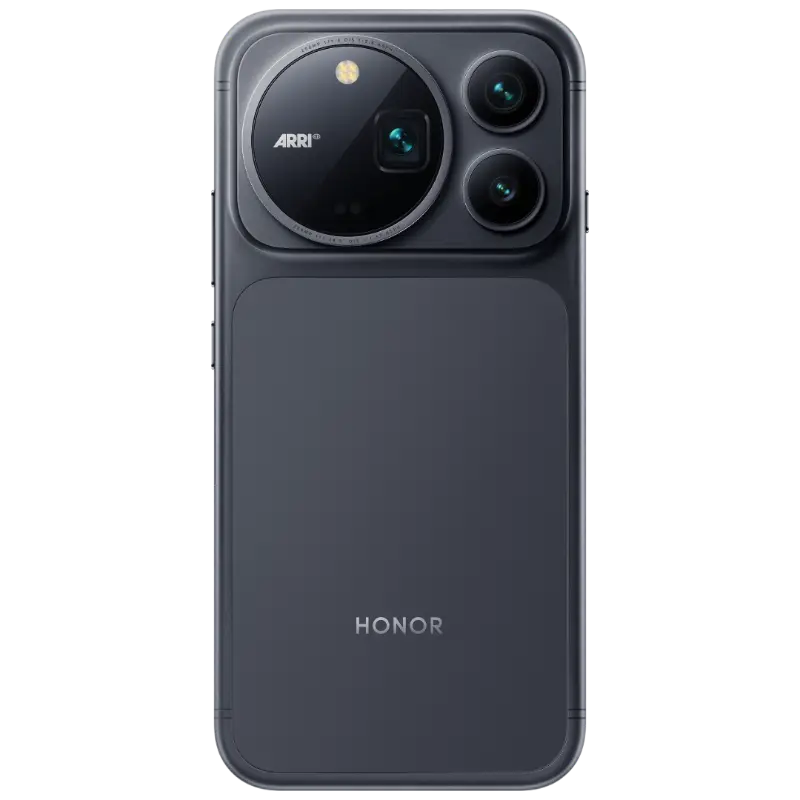

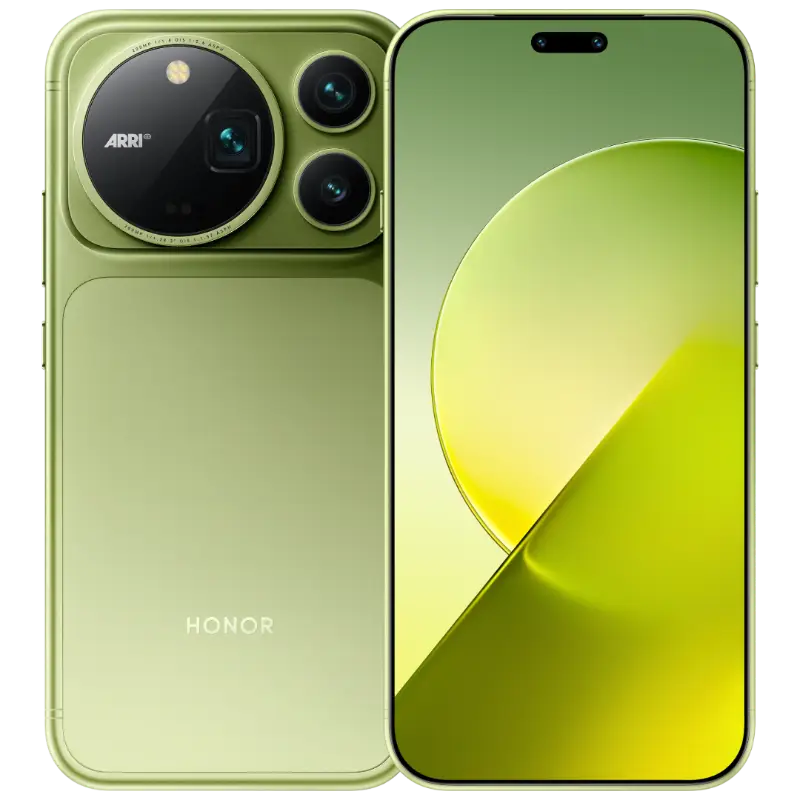

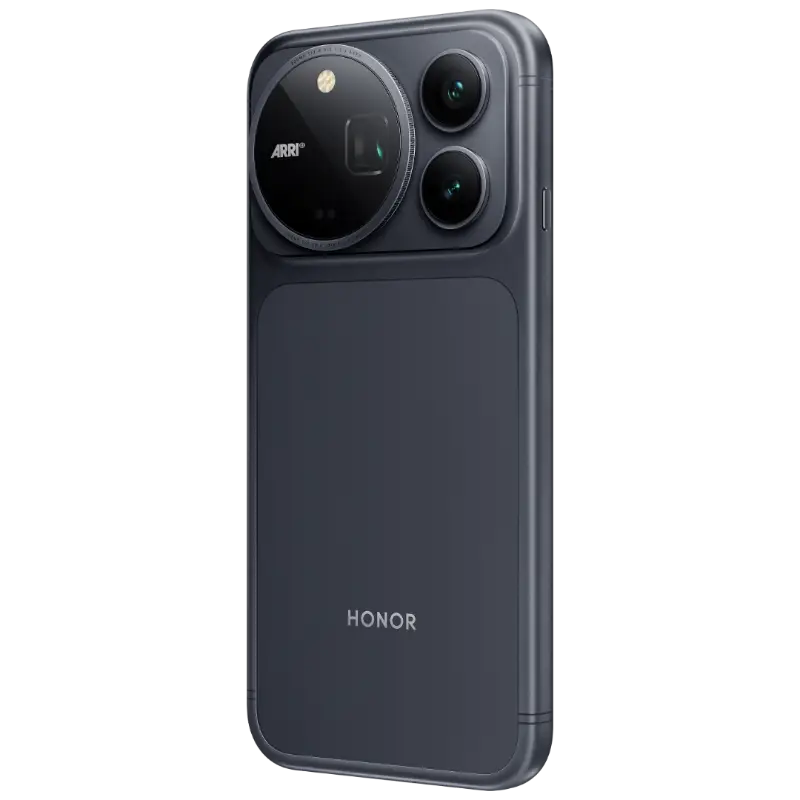

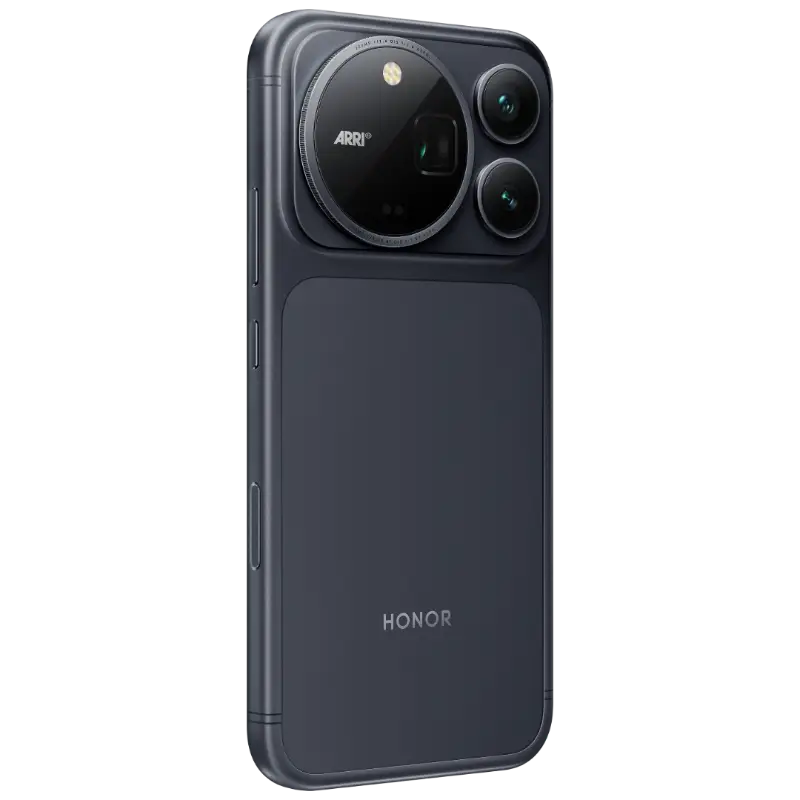

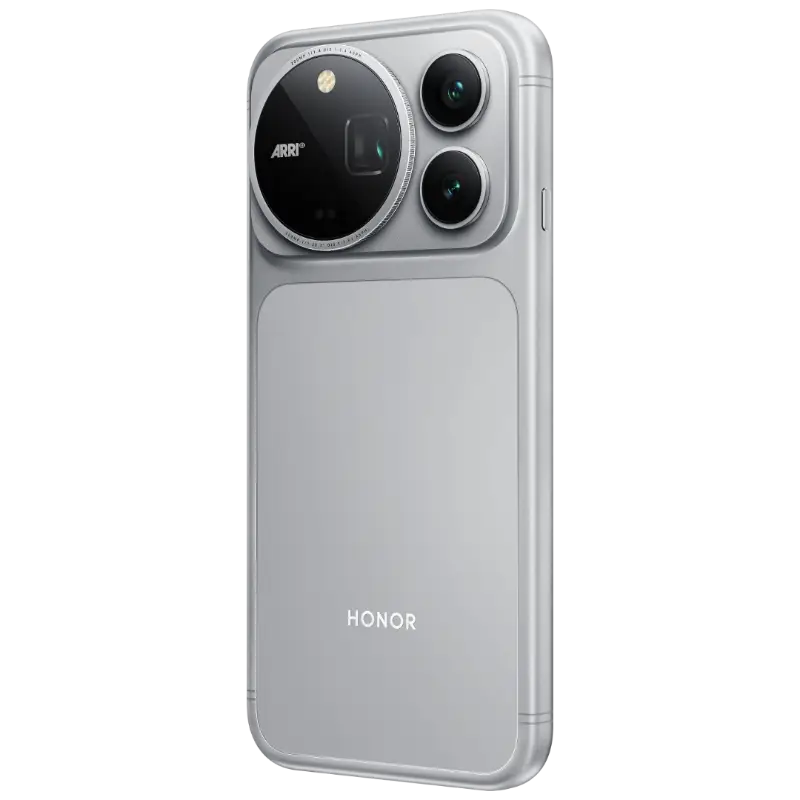

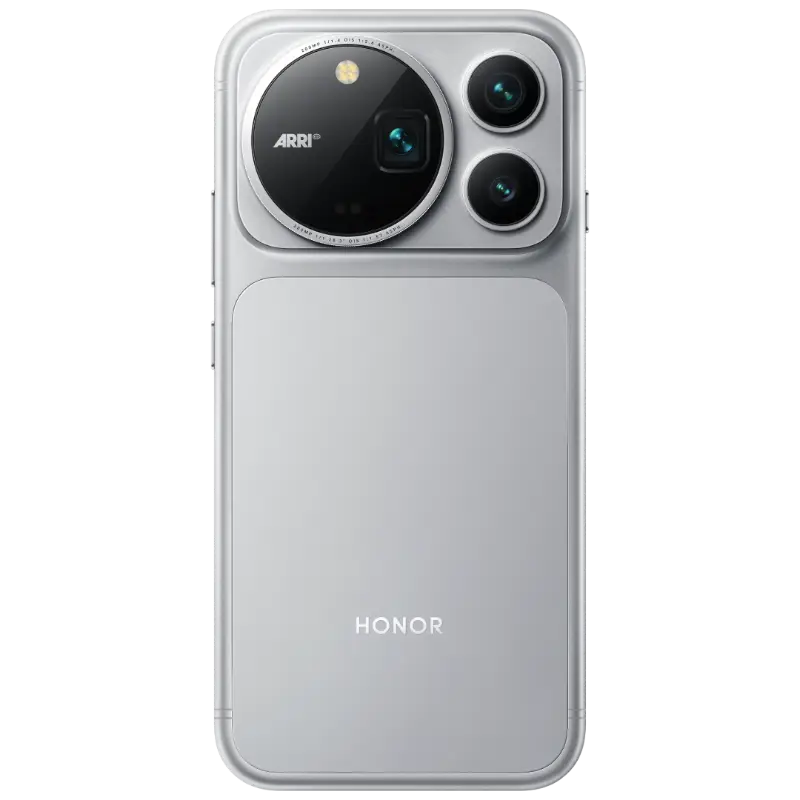

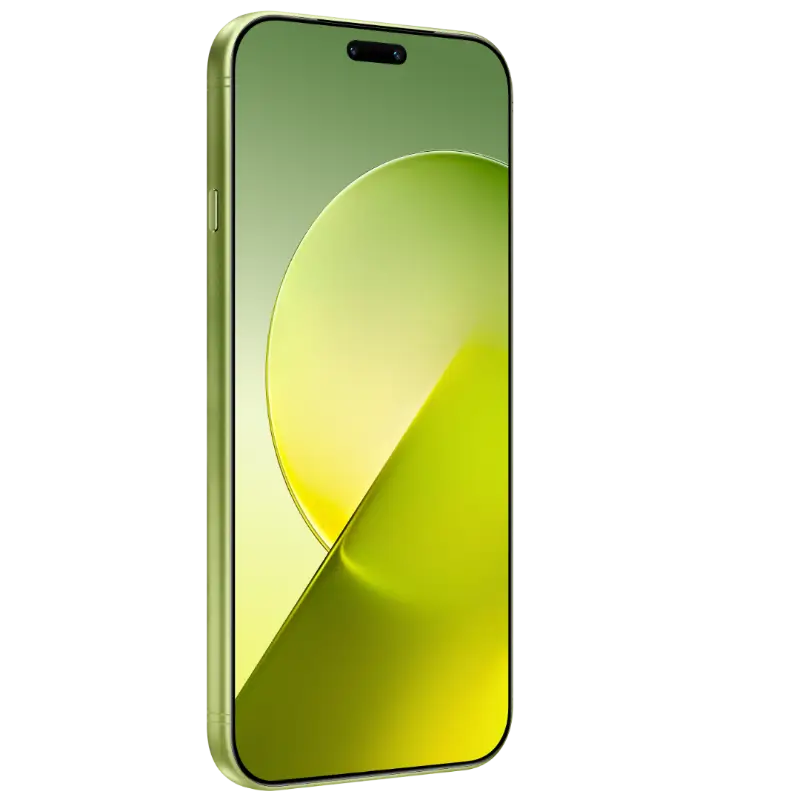

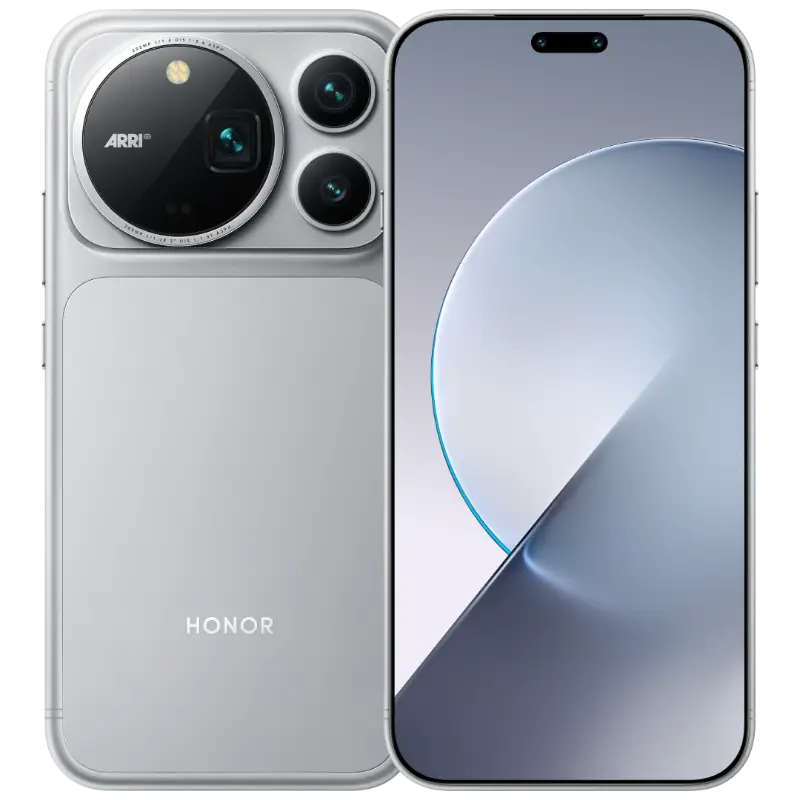

• Colors and packages: Moss Green, Shadow Black, and Glacier Silver. Every listed RAM/storage pair is offered in all three colors with the Standard package. Photography Master Kit is offered only in 16GB/1TB Shadow Black.

Dimensions and construction

• Dimensions: 161.64 × 76.98 × 8.59 mm (height × width × thickness).
• Device weight: Approximately 233 g, including the battery. Dimensions and weight can vary with configuration and manufacturing.
• Body: All-metal unibody.

Display

• Size and panel: 6.8-inch LTPO OLED; flat 2.5D display. The diagonal is measured as a standard rectangle; the rounded-corner viewable area is smaller.
• Resolution and density: FHD+ 1320 × 2868 pixels; approximately 464 ppi. Resolution describes the standard rectangle; the effective display has slightly fewer pixels.
• Screen-to-body ratio: 95.33%, according to HONOR laboratory measurement.
• Refresh rate: Adaptive 1–120Hz, with 1Hz, 60Hz, 90Hz, and 120Hz modes; availability and behavior depend on the app.
• Color: True 1.07 billion colors; DCI-P3 wide color gamut. DCI-P3 output requires corresponding image or video content.
• Brightness: Local peak brightness: up to 10,000 nits; global peak brightness: 2,000 nits.
• Visual-comfort features: Visual health management system, Personalized Display 2.0, circular-polarization eye comfort 2.0, 4320Hz high-frequency PWM dimming at low brightness, dry-eye-friendly display, defocus viewing comfort, eye comfort mode, natural-light eye comfort, sleep-friendly display, and natural color display. This product is not a medical device and has no treatment function.
• Display technologies and certifications: HDR display for images and video, Super Dynamic Display, vivid color display; TÜV Rheinland Global Eye Care 6.0 certification, TÜV Rheinland low-reflection certification, HDR VIVID certification, and Dolby Vision.
• Cover glass: HONOR Anti-Scratch NanoCrystal Shield with an anti-reflective coating.
• Touch: Multitouch with up to 10 touch points.

Processor and software

• Chipset: Snapdragon 8 Elite Extreme Gen 6 Mobile Platform.
• CPU: Eight cores: 2 × Prime at up to 5.01GHz + 3 × Performance at up to 4.03GHz + 3 × Performance at up to 3.74GHz. Operating frequency adjusts to the application load.
• GPU: Adreno 850.
• Operating system: MagicOS 11, based on Android 17.
• Navigation: Gesture navigation by default, on-screen three-button navigation, and floating navigation.
• AI and productivity features: YOYO Tasks, YOYO one-tap notes, YOYO Suggestions, YOYO Agent, AI Call Assistant, AI Translation, full-screen translation, voice translation, AI subtitles, AI Calendar, AI Search, AI Documents, AI Notes, YOYO Memory, personal task center, YOYO Assistant, breath activation, and Magic Text.
• Interface personalization: Customizable large home-screen folders, personalized lock screen, Liquid Glass, frosted glass, flowing transparent effects, cube personalization, Magic Avatar, interactive themes, Magic Capsule, Magic Lock Screen, full-screen always-on display, transparent-style customization, lock-screen widgets, music lock screen, art clock, notification organization, customizable Control Center, and status-interaction always-on display.
• System and collaboration tools: Turbo X Engine, HONOR Hummingbird Architecture, intelligent connectivity, Magic Portal, HONOR OneTap, iPhone interconnection, smart RAM management, voice-controlled calling, Multi-Screen Collaboration, desktop mode, smart vision, smart screen recognition, smart multi-window, dark mode, e-book mode, clean file management, keep screen on while looking, reduce incoming-call volume while looking, HONOR Share, quick-launch gestures, App Twin, Device Clone, business-card scanning, backup and restore, and maintenance mode.
• Security features: AI face-swap and voice-change detection, Parallel Space, dual-TEE security system, mobile security shield, Password Vault, approximate location, Privacy Assistant, App Lock, Payment Protection Center, privacy moments, app-redirection alerts, call anti-fraud protection, and anti-fraud firewall.
• Cross-device requirements: HONOR Connect transfer requires the HONOR Connect app and supported devices running iOS 17 or later, macOS 12 or later, or Windows 10 or later. Some collaboration features require an OTA update. YOYO functions depend on supported services.

Rear cameras

• Camera system: 200MP wide camera with a 1/1.28-inch sensor, f/1.57, OIS; 200MP periscope telephoto camera with a 1/1.4-inch sensor, f/2.6, OIS; 50MP ultrawide camera, f/2.0, autofocus. Laser autofocus, color-temperature, and flicker sensors.
• Imaging processor: HONOR Imaging Chip H1.
• Zoom: 3.5x optical zoom; up to 200x digital zoom. Available zoom behavior varies by mode.
• Photo resolution: Up to 16384 × 12288 pixels. Photo resolution varies by mode; maximum resolution requires High resolution mode. Lens focal-length behavior can also vary by mode.
• Video recording: 4K at 30/60/120 fps; 1080p at 30/60 fps; 720p at 30/60 fps; 1080p slow motion at 120/240 fps. Maximum regular video resolution: 3840 × 2160 pixels; resolution varies by mode. H.264 and H.265 encoding; video zoom up to 0.5x–15x; time-lapse at up to 4K.
• Video stabilization and sound: OIS video stabilization on the wide and telephoto cameras; EIS video stabilization on the ultrawide. Video beautification, audio zoom, stereo sound recording, and Bluetooth-headset recording. Both electronic and optical image stabilization are supported.
• ARRI CINEMA: Up to 4K 60 fps; ARRI LogC3, 10-bit color, and ARRI Wide Gamut 3; 14 preset ARRI Looks and an 87-Look library that must be downloaded and imported. Features vary by camera and mode; some imaging features, including Cinematic LiveVideo, require an OTA update.
• Stabilization rating: CIPA 8.0 on the 24mm main and 85mm telephoto cameras under HONOR laboratory/CIPA test conditions; 3-degree gimbal-level main-camera stabilization. Some stabilization features require an OTA update; results depend on the shooting conditions.
• Shooting modes: ARRI CINEMA, cinematic live photos, new portrait styles, flash portraits, fireworks portraits, HONOR Falcon super burst, AI high-resolution Harcourt portraits, stage mode, HONOR Falcon capture, automatic HONOR Falcon capture, intelligent tracking focus, subject tracking focus, AI photography, High resolution, time-lapse, wide angle, Night, Super Macro, Portrait with beautification, moving photos, HDR photography, Pro, slow motion, Panorama, filters, watermarks, smile capture, voice shutter, timer, document scanning, multi-output recording, intelligent wide angle, burst shooting, telephoto picture-in-picture, Moon mode, AI high-resolution night scenes, AI color tracking, and inspiration-assisted photography.

Front cameras

• Camera system: 55MP camera with a 1/2.74-inch sensor, f/2.0 aperture, and a field of view up to 92°; 3D depth camera. Photo resolution varies by mode.
• Photo resolution: Up to 8576 × 6432 pixels; output varies by mode.
• Video resolution: Up to 3840 × 3840 pixels, depending on the recording mode.
• Video recording: 4K, 1080p, or 720p at 30/60 fps; H.264 and H.265 encoding; 0.8x and 1x framing; EIS video stabilization; video beautification; audio focus; stereo sound recording; Bluetooth-headset recording.
• Shooting modes: Landscape capture while holding the phone upright, flexible post-capture cropping, Portrait, filters, smile capture, mirrored selfies, voice shutter, timer, gesture shutter, Night, selfie ring illumination, and High resolution.
• Face recognition: 3D face recognition.

Battery and charging

• Capacity: 8800mAh typical; 8600mAh rated.
• Battery type: Lithium-ion polymer battery; HONOR Qinghai Lake silicon-carbon battery.
• Wired charging: Up to 100W HONOR SuperCharge at 20V/5A; also supports 11V/6A, 20V/3.3A, and 5V/2A charging profiles. Maximum power requires the original HONOR SuperCharge charger and original cable. Actual power varies with conditions; the listed standard package includes a charger and cable.
• Wired reverse charging: Up to 27W, for compatible devices tested by HONOR.
• Wireless charging: Up to 80W HONOR Wireless SuperCharge; requires a separately purchased HONOR wireless SuperCharge charger rated at least 80W. Actual power varies with conditions. Wireless reverse charging is supported.
• Smart charging mode: Supported.

Dust and water resistance

• Ratings: IP68 and IP69 under GB/T 4208-2017; IP69K under ISO 20653:2023, tested in controlled laboratory conditions.
• Use limitations: The phone is not a professional waterproof device. Splash, water, and dust protection are not permanent and can decrease with everyday wear. Do not charge while wet; follow the user manual for cleaning and drying. Damage caused by immersion in liquid is excluded from the manufacturer’s warranty.

Cellular connectivity

• Mainland-China network standards: China Mobile: 5G-A/5G/4G+/4G/2G; China Telecom: 5G-A/5G/4G+/4G; China Unicom: 5G-A/5G/4G+/4G/3G/2G; China Broadnet: 5G-A/5G/4G+/4G. 5G/4G service depends on carrier network and service deployment.
• Radio technologies: 4×4 MIMO, carrier aggregation, HPUE, and HO RxD; HONOR C3 RF enhancement chip.
• SIM slots and default data: Two nano-SIM slots. Either slot can be selected as the default mobile-data SIM. With two China Telecom SIMs, the secondary non-data SIM must have China Telecom VoLTE service enabled.
• eSIM: Stores up to two eSIM numbers. Activation, fees, and service details depend on the local carrier.
• Network features: HONOR Priority Connect, Global Travel, intelligent network selection, and Link Turbo X network acceleration. HONOR Priority Connect activates according to the usage scenario during congestion, is free for a limited period, and depends on carrier service deployment.

Wireless and wired connections

• Wi-Fi standards: Wi-Fi 8 (802.11bn), Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and 802.11a/b/g/n/ac on 2.4GHz and 5GHz. Wi-Fi 8 requires an OTA update; Wi-Fi 7 and Wi-Fi 8 require their corresponding compatible routers.
• Wi-Fi functions: 5GHz 2×4 MIMO (requires an OTA update), MLO, 4096-QAM, 160MHz, MU-MIMO, simultaneous 2.4GHz and 5GHz connectivity, Wi-Fi hotspot, and Wi-Fi Direct.
• Bluetooth: Bluetooth 6.3; BLE, LE Audio, Auracast; SBC, AAC, LDAC, aptX, aptX HD, aptX Adaptive, aptX Lossless, LC3, and LHDC 5.0/4.0/3.0 codecs. ASHA and LE Audio hearing-aid protocols.
• USB and audio port: USB Type-C; USB 3.2 Gen 1 with DisplayPort 1.2; USB Type-C headset connection. USB 3.2 Gen 1 requires a compatible cable sold separately; the included cable supports USB 2.0.
• Additional connections: Wired and wireless screen projection, infrared remote control, PC data synchronization, carrier and third-party video calling, and OTG with reverse power output up to 5V/1A. Infrared supports transmitting only, without a learning function. Carrier features vary by carrier, country, and region.

Positioning and sensors

• Positioning: BeiDou B1I/B1C/B2a/B2b (four-frequency), GPS L1/L5 (dual-frequency), GLONASS G1, Galileo E1/E5a/E5b (tri-frequency), QZSS L1/L5 (dual-frequency), NavIC L1/L5 (dual-frequency), and A-GNSS.
• Sensors: Gravity sensor, infrared sensor, fingerprint sensor, Hall sensor, accelerometer, gyroscope, compass, ambient-light sensor, and proximity sensor.
• Fingerprint recognition: 3D ultrasonic fingerprint recognition.
• NFC: Read/write mode and card emulation with HONOR Wallet, NFC-SIM, and HCE. NFC-SIM must be placed in SIM slot 1, on the side facing away from the screen. NFC sensing areas are at the top of the phone and around the rear telephoto camera.

Audio and multimedia

• Video file formats: 3GP and MP4.
• Audio file formats: MP3, MP4, 3GP, OGG, AMR, AAC, FLAC, WAV, and MIDI.
• Speakers and effects: Stereo Dual 1216 Speakers; HONOR Sound effects.
• Recording and call audio: Cinematic Directional Microphone with a four-microphone camera-recording system; three-microphone audio zoom for rear video; three-microphone audio focus for front video; AI noise reduction for VoIP and CS calls; remote recording through a Bluetooth headset. VoIP AI noise reduction and Bluetooth-headset remote recording require compatible apps.

Standard package

• Included items: Phone with built-in battery ×1; Quick Start Guide ×1; HONOR SuperCharge charger ×1; USB Type-C data cable ×1; SIM eject tool ×1; protective case ×1; new-device benefits card with electronic Three Guarantees service certificate ×1. The retail box uses plastic sealing. Final contents are subject to the supplied package.

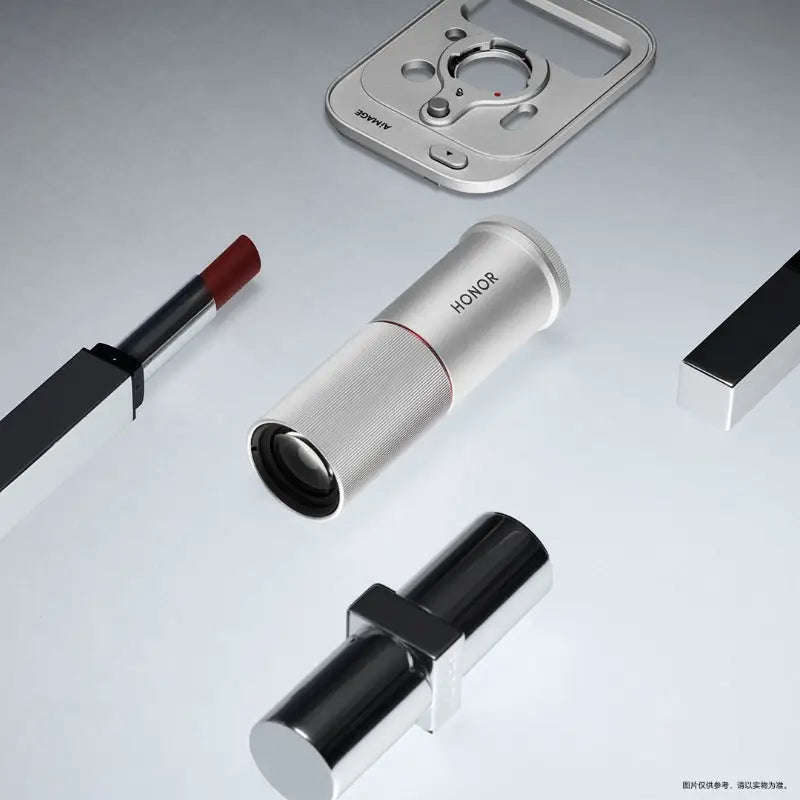

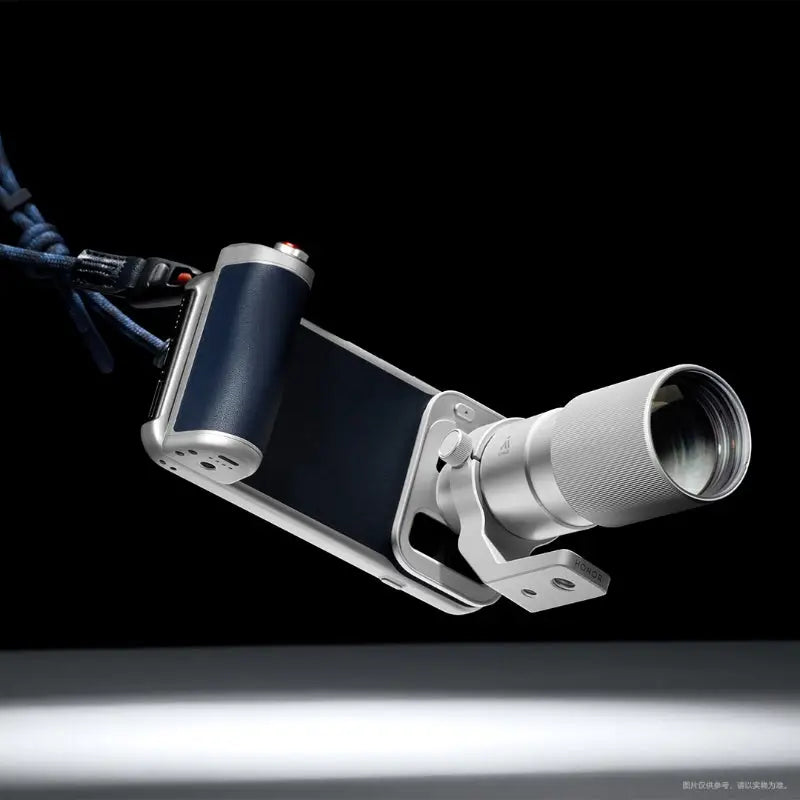

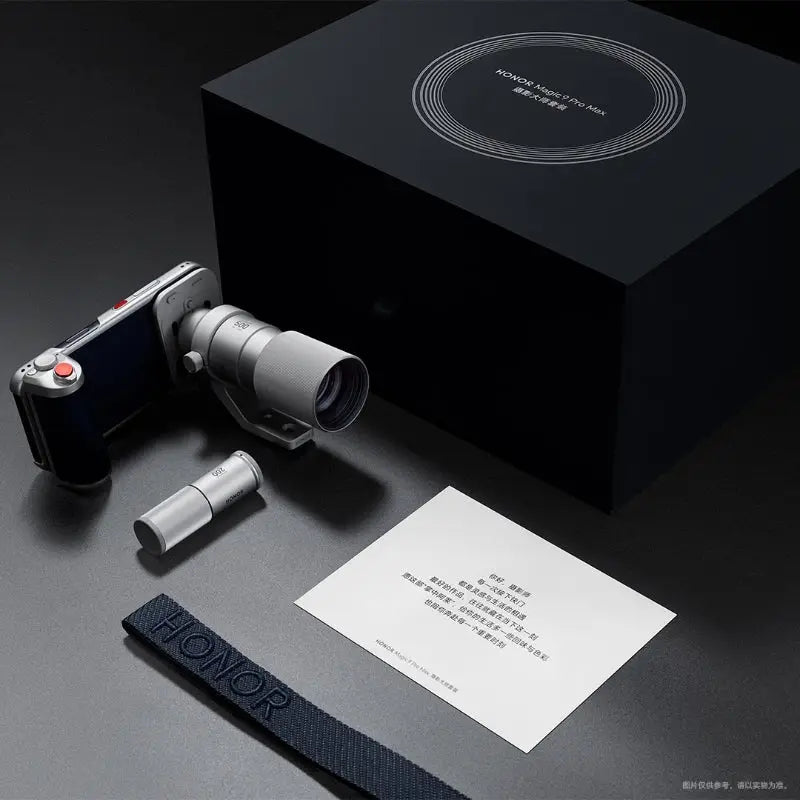

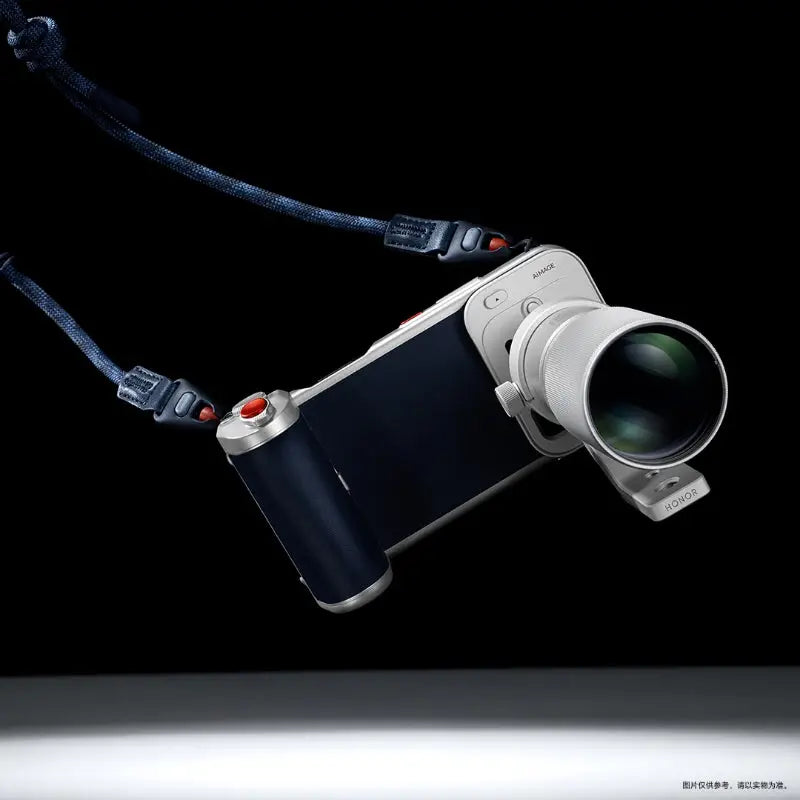

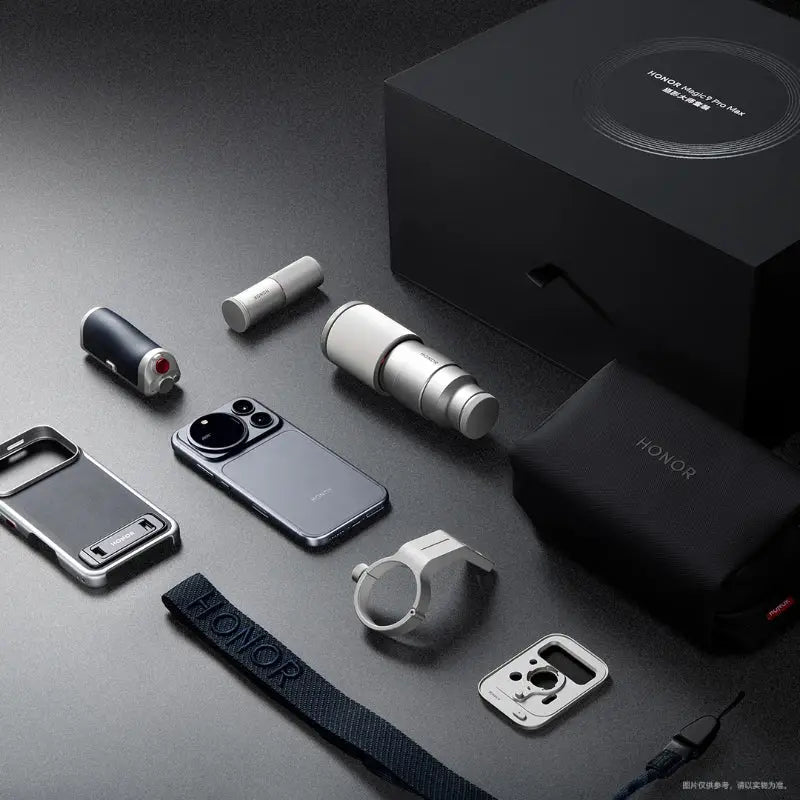

Photography Master Kit

• Phone configuration: WKL-AN80; 16GB RAM + 1TB internal storage; Shadow Black only.
• Included items: Phone ×1; HONOR SuperCharge charger ×1 and new-device benefits card with electronic Three Guarantees service certificate ×1 in the phone box; HONOR Teleconverter G200 ×1; HONOR Teleconverter G500 ×1; imaging shoulder strap ×1; professional imaging grip ×1; Magic9 Pro Max imaging protective case ×1; imaging storage bag ×1; teleconverter adapter cap ×1; Quick Start Guide ×1; teleconverter bracket ×1; charging cable ×1. These imaging accessories are included only with the Photography Master Kit. Final contents are subject to the supplied package.
